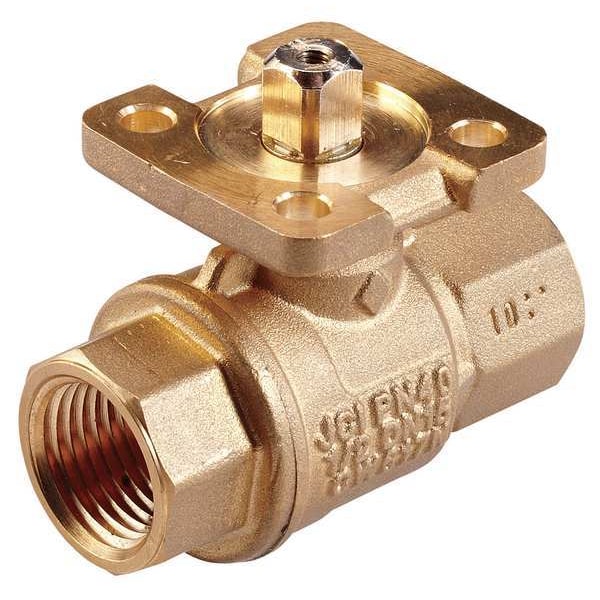

Ball Valve, 2 Way, SS Trim, (F)NPT 1/2
| Item | HVAC Control Ball Valve |
|---|---|
| Connection Type | (F)NPT |
| Width | 1-5/16 in |
| Safe Working Water PSI | 580 psi |
| Valve Only/Actuator Included | Valve Only |
| For Use With | M9000 or VA9000 Series Actuators |
| Depth | 2-1/2 in |
| Includes | Valve Only |
| Closeoff Pressure | 200 psi |
| Coefficient of Volume | 4.7 |
| Safe Working Steam PSI | 15 with Thermal Spacer |
| Connection Size | 1/2 in |
| Height | 1-7/8 in |
| Max. Water Temp. | 284 Degrees F |
| Power Source | Electric Actuator |
| Valve Type | 2-Way |
| Material | Stainless Steel Trim |
| Application | Control of Hot/Chilled Water |
| Flow Characteristic | Equal Percentage |
| Actuator Input Voltage | Not Applicable |
| Actuator Control Signal | Not Applicable |
| Port Connection Size | 1/2 in |
| Stem Material | Stainless Steel |
| Actuator Type | Not Applicable |
| Port Connection Type | NPT |
| Body Material | Brass |
| Bypass Port Coefficient of Volume (Cv) | Not Applicable |
| Includes Actuator | Actuator Not Included |
| Manufacturer Series | VG1000 |
| Ball Material | Stainless Steel |
| Actuator Return Action | Not Applicable |
| Trim Material | Stainless Steel |
| For Media | Steam, Water |
| Gasket Material | EPDM |
| Port Types Included | Control |
| Actuator Control Pressure - Maximum | Not Applicable |
| Port Connection Gender | Female |
| Operating Temperature - Minimum | -22 deg F |
| Overall Depth | 2-1/2 in |
| Overall Height | 1-7/8 in |
| Overall Length | 1-5/16 in |
| Disk Material | Polyphthalamide Resin |
| Body Pattern | Two-Way |
| Rangeability | 500:1 |
| Operating Temperature - Maximum | 284 deg F |
| Close-Off Pressure | 200 psi |
| ANSI Rating | ANSI Leakage Class IV |
| Resistance Properties | Wear Resistant |
| Includes Characterizing Disk | Disk Included |
| Coefficient of Volume (Cv) | 4.7 |
| Leakage Rate | 0.01 % |
| Actuator Control Pressure - Minimum | Not Applicable |
| Specific Valve Action | Stem Down to Close |
| Seat Material | Graphite-Reinforced PTFE |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
