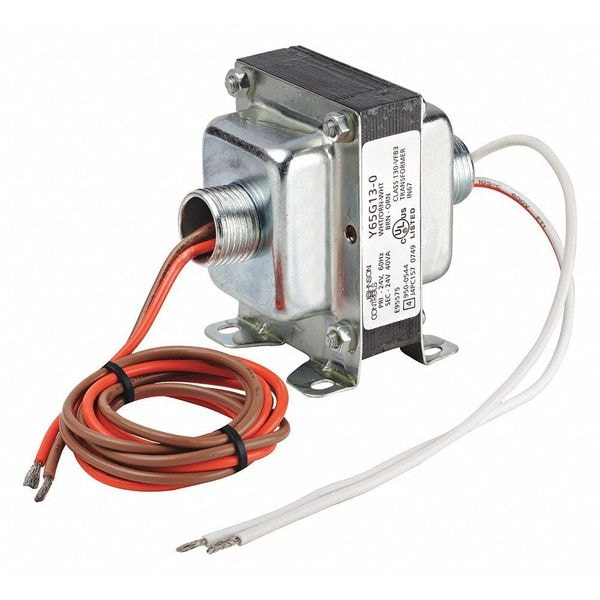

Class 2 Transformer, 40 VA, Not Rated, Not Rated, 24V AC, 277/480V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 277/480V AC |
| Mounting - Transformer | Plate |
| Hz - Electrical | 60 |
| Height | 2.63 in |
| Enclosure Style - Transformer | Open |
| Depth | 3.16 in |
| Primary Connection | Leads |
| Enclosure Type | Open |
| Enclosure Finish | No Finish |
| Enclosure Rating | Not Rated |
| Protective Device | None |
| Includes | 4 in x 4 in Plate and Nut |
| Standards | cURus |
| Width | 2.19 in |
| Output Voltage - Transformer | 24V AC |
| Temp. Rise | Not Rated |
| Secondary Connection | 8 in Leads |
| Phase - Electrical | 1 |
| VA Rating - Transformer | 40 VA |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Lead |
| Wire Lead Length - Primary | 8 in |
| Operating Temperature - Maximum | 104 deg F |
| Operating Temperature - Minimum | -40 deg F |
| Wire Lead Length - Secondary | 8 in |
| Package Quantity | 1 |
