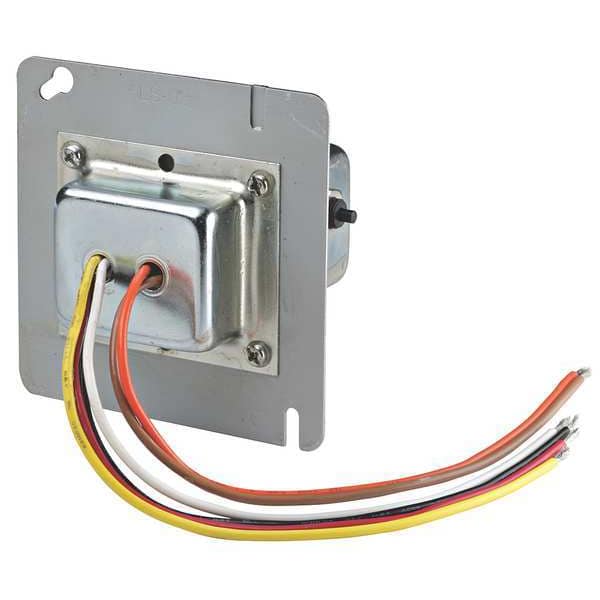

Class 2 Transformer, 50 VA, Not Rated, Not Rated, 24V AC, 120/208/240V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240V AC |
| Mounting - Transformer | Plate |
| Hz - Electrical | 60 |
| Output Voltage - Transformer | 24V AC |
| Temp. Rise | Not Rated |
| Standards | cURus |
| Enclosure Style - Transformer | Open |
| Protective Device | Circuit Breaker |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open |
| Primary Connection | Leads |
| Depth | 4.19 in |
| Width | 3.52 in |
| Height | 4.19 in |
| Includes | 4 in x 4 in Plate and Nut |
| Enclosure Finish | No Finish |
| VA Rating - Transformer | 50 VA |
| Secondary Connection | 8 in Leads |
| Phase - Electrical | 1 |
| Connection - Secondary | Wire Lead |
| Operating Temperature - Maximum | 104 deg F |
| Connection - Primary | Wire Lead |
| Wire Lead Length - Primary | 8 in |
| Wire Lead Length - Secondary | 8 in |
| Operating Temperature - Minimum | -40 deg F |
| Package Quantity | 1 |
