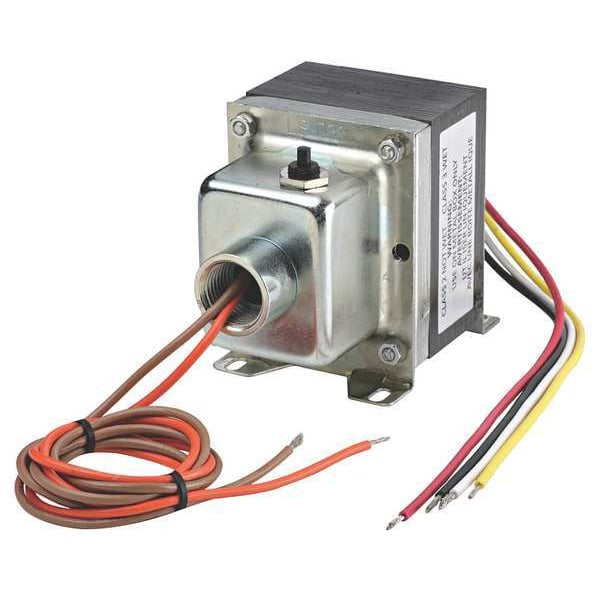

Class 2 Transformer, 92 VA, Not Rated, Not Rated, 24V AC, 120/208/240V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 60 |
| Enclosure Style - Transformer | Open |
| Height | 3-1/4 in |
| Depth | 5.44 in |
| Temp. Rise | Not Rated |
| Protective Device | Circuit Breaker |
| Primary Connection | Leads |
| Phase - Electrical | 1 |
| Secondary Connection | 30 in Leads |
| Standards | cULus |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open |
| VA Rating - Transformer | 92 VA |
| Output Voltage - Transformer | 24V AC |
| Enclosure Finish | No Finish |
| Width | 2-1/2 in |
| Connection - Primary | Wire Lead |
| Wire Lead Length - Secondary | 30 in |
| Operating Temperature - Minimum | -40 deg F |
| Connection - Secondary | Wire Lead |
| Operating Temperature - Maximum | 104 deg F |
| Wire Lead Length - Primary | 8 in |
| Package Quantity | 1 |
