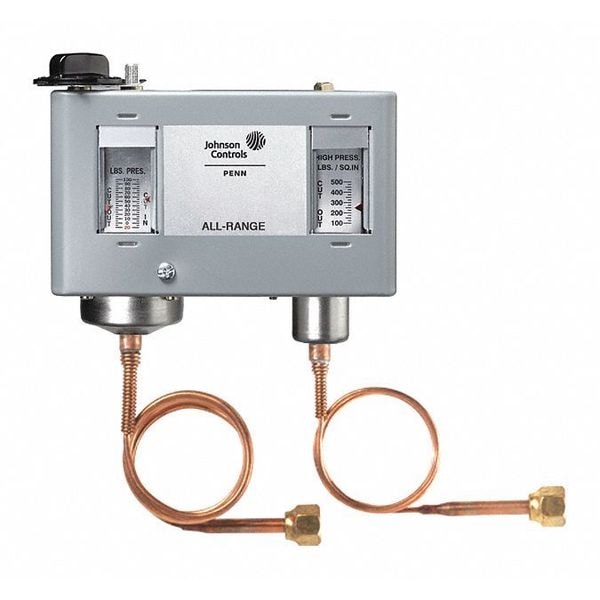

Dual Pressure Control, SPST
| Item | Dual Pressure Control |
|---|---|
| Switch Type | SPST |
| Low Pressure Range (PSIG) | 12 in Hg to 80 |
| High Pressure Range (PSIG) | 100 to 500 |
| High Pressure Differential (PSIG) | 65 psig |
| Low Pressure Differential (PSIG) | 5 to 35 |
| Reset Low | Auto |
| Includes | Universal Mounting Bracket |
| For Use With | Non-Corrosive Refrigerants |
| Pressure Connection | 36 in Capillary with 1/4 in Flare Nut |
| Reset High | Manual |
| Product Type | Dual Pressure Control |
| Reset Type - High Side | Manual Reset |
| Pressure Connection Gender | Female |
| Reset Type - Low Side | Automatic Reset |
| Pressure Connection Size | 1/4 in |
| Series | P70 |
| Minimum Pressure Range - High Side | 100 psi |
| Minimum Pressure Range - Low Side | 12 inHg |
| Housing Material | Steel |
| Maximum Differential Pressure - High Side | Not Applicable |
| Maximum Pressure Range - Low Side | 80 psi |
| Minimum Differential Pressure - Low Side | 5 psi |
| Application | Air Conditioning, Commercial Refrigeration |
| Compatible Refrigerant | Non-Corrosive Refrigerants |
| Maximum Pressure Range - High Side | 500 psi |
| Minimum Differential Pressure - High Side | Not Applicable |
| Overall Width | 5-3/4 in |
| Maximum Differential Pressure - Low Side | 35 psi |
| Pressure Connection Type | Flare |
| Overall Depth | 2 1/8 in |
| Capillary Tube Length | 36 in |
| Pressure Type | Differential |
| Contact Rating (AC) | 102 A @ 240V AC (Single Phase), 112.2 A @ 208V AC, 15 A @ 220V AC (Three Phase), 15.9 A @ 208V AC, 17 A @ 240V AC (Single Phase), 18.7 A @ 208V AC, 22 A @ 208V AC, 24 A @ 120V AC (Non-Inductive), 24 A @ 208V AC, 24 A @ 220V AC (Three Phase), 24 A @ 240V AC (Single Phase), 90 A @ 220V AC (Three Phase), 95.4 A @ 208V AC, FLA: 24 A @ 120V AC, LRA: 144 A @ 120V AC |
| NEMA Rating | 1 |
| Switch Action | Open |
| Contact Form | SPST |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
