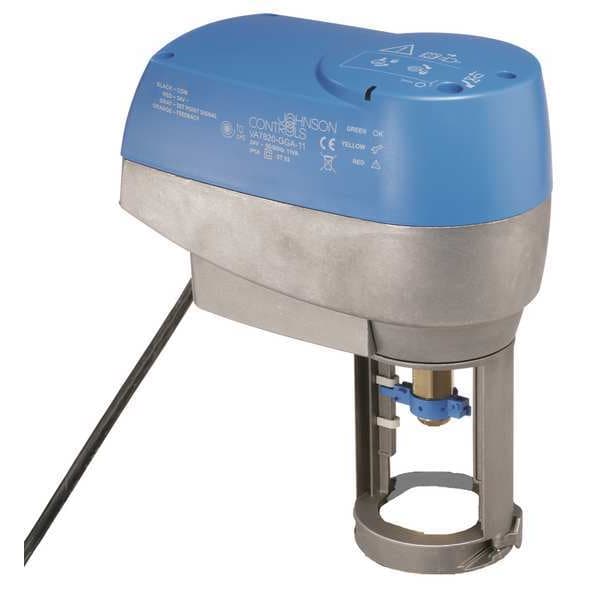

Elec Act, 180 in.-lb., 2 SPDT, 24VAC
| Signal Type | Proportional/On-Off/Floating |
|---|---|
| Torque | 180 in-lb |
| Voltage | 24V AC |
| Type of Actuator | Spring Return |
| Power Consumption | 11 VA |
| Height | 9 in |
| For Use With | Globe Valves |
| Width | 4-1/2 in |
| Stroke Deg. | 1 |
| Depth | 8-3/8 in |
| Electrical Connections | Cable |
| Cycle Time | 76 sec |
| Auxiliary Switch Type | 2 SPDT |
| Item | Electric Globe Valve Actuator |
| Ambient Temp. Range | To 131 Degrees F |
| Includes | Valve Linkage |
| Product Type | Valve Actuator |
| Overall Depth | 8-3/8 in |
| Electrical Lead Length | 4 ft |
| Compatible Series | VG7000 |
| Control Signal | Floating Point, On/Off, Proportional |
| Number of Auxiliary Switches | 2 |
| Installation Orientation | Horizontal Preferred |
| Stroke Degree | 1 Degrees |
| Mounting Style | Direct Mount |
| Overall Height | 9-5/8 in |
| Operating Temperature - Maximum | 131 deg F |
| Standards | CCN XAPX File E194024, CE, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL 60730 Listed Type 1 Enclosure |
| Electrical Connection Type | Cable |
| Auxiliary Contact Form | SPDT |
| Includes Electrical Leads | Electrical Leads Included |
| Compatible Brand | Johnson Controls |
| Operating Temperature - Minimum | 23 deg F |
| Power Failure Action | Stem Up |
| Overall Width | 4-9/16 in |
| Frequency | 50/60 Hz |
| Application | Chilled/Hot Water Control, Steam Control |
| Stroke Length | 2 in |
| NEMA Rating | 2 |
| Return Action | Spring Return |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
