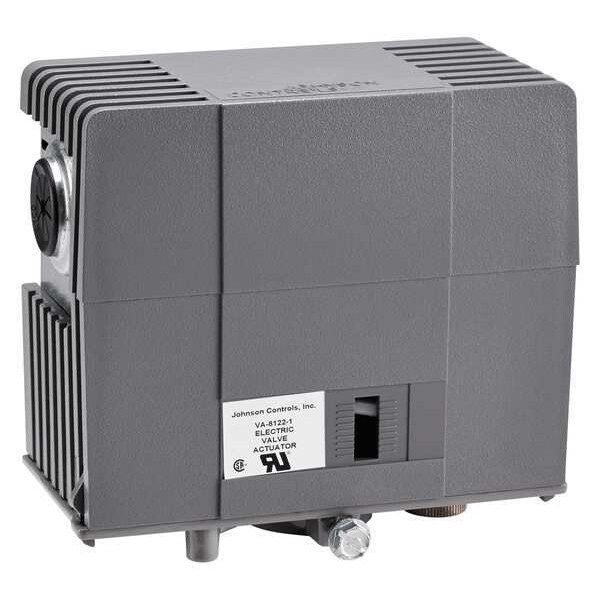

Elec Act, 22 in.-lb., Proportional, 24VAC
| Signal Type | Proportional |
|---|---|
| Torque | 22 in-lb |
| Voltage | 24V AC |
| Electrical Connections | Screw Terminals |
| Cycle Time | 108 sec |
| Width | 4-1/2 in |
| Type of Actuator | Non-Spring Return |
| Power Consumption | 5 VA |
| Height | 5 in |
| Ambient Temp. Range | To 150 Degrees F |
| Stroke Deg. | 5/16 |
| For Use With | Globe Valves |
| Depth | 2-1/2 in |
| Includes | Valve Linkage |
| Item | Electric Globe Valve Actuator |
| Overall Height | 5 in |
| Standards | CE Directive 89/336/EEC, CSA C22.2 No. 139 Certified, File LR85083, Class 3221 02, UL 873 File E27734, Guide XAPX2 |
| Overall Width | 4-1/2 in |
| Product Type | Valve Actuator |
| Number of Auxiliary Switches | 0 |
| Electrical Lead Length | Not Applicable |
| Frequency | 50/60 Hz |
| NEMA Rating | 1 |
| Compatible Brand | Johnson Controls |
| Electrical Connection Type | Terminals |
| Control Signal | Proportional |
| Operating Temperature - Maximum | 150 deg F |
| Overall Depth | 2-1/2 in |
| Stroke Length | 5/16 in |
| Compatible Series | VG7000 |
| Return Action | Non-Spring Return |
| Operating Temperature - Minimum | 35 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
