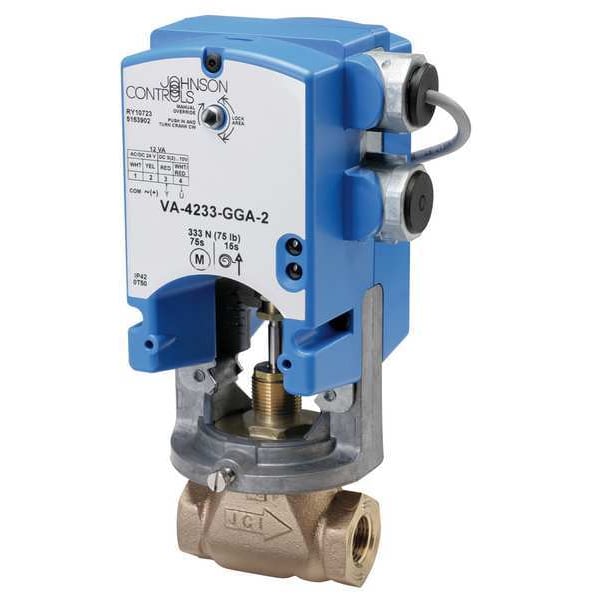

Elec Act, 61 in.-lb., Proportional, 24VAC
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Signal Type | Proportional |
| Torque | 61 in-lb |
| Voltage | 24V AC/DC |
| Type of Actuator | Spring Return |
| Ambient Temp. Range | To 122 Degrees F |
| Depth | 3-19/32 in |
| Power Consumption | 12 VA |
| Width | 4-3/32 in |
| Cycle Time | 76 sec |
| Height | 6-11/32 in |
| For Use With | Globe Valves |
| Stroke Deg. | 29/32 |
| Electrical Connections | Cable |
| Item | Electric Globe Valve Actuator |
| Includes | Hardware Kit |
| Overall Width | 4-1/8 in |
| Standards | CSA C22.2 No. 139 Certified, File LR85083, Class 3221 02, UL 873 File E27734, CCN XAPX |
| Application | Chilled/Hot Water Control, Steam Control |
| Overall Height | 6-3/8 in |
| Product Type | Valve Actuator |
| Compatible Manufacturer Model Number | VG7241CT+423GGA, VG7241ET+423GGA, VG7241GT+423GGA, VG7241LT+423GGA, VG7241NT+423GGA, VG7241PT+423GGA, VG7441CT+423GGA, VG7441ET+423GGA, VG7441GT+423GGA, VG7441LT+423GGA, VG7441NT+423GGA, VG7441PT+423GGA, VG7842CT+423GGA, VG7842ET+423GGA, VG7842GT+423GGA, VG7842LT+423GGA, VG7842NT+423GGA, VG7842PT+423GGA |
| Compatible Close-Off Pressure | 345 psi |
| Number of Auxiliary Switches | 0 |
| Mounting Style | Direct Mount |
| Auxiliary Contact Form | Not Applicable |
| Operating Temperature - Minimum | 32 deg F |
| Compatible Brand | Johnson Controls |
| Return Action | Spring Return |
| Frequency | 50/60 Hz |
| Compatible Valve Body Pattern | Three-Way, Two-Way |
| Electrical Connection Type | Cable |
| Electrical Lead Length | 4 ft |
| Overall Depth | 3-5/8 in |
| Includes Electrical Leads | Electrical Leads Included |
| Operating Temperature - Maximum | 122 deg F |
| Stroke Length | 7/8 in |
| Compatible Series | VG7000 |
| Control Signal | Proportional |
| NEMA Rating | 2 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
