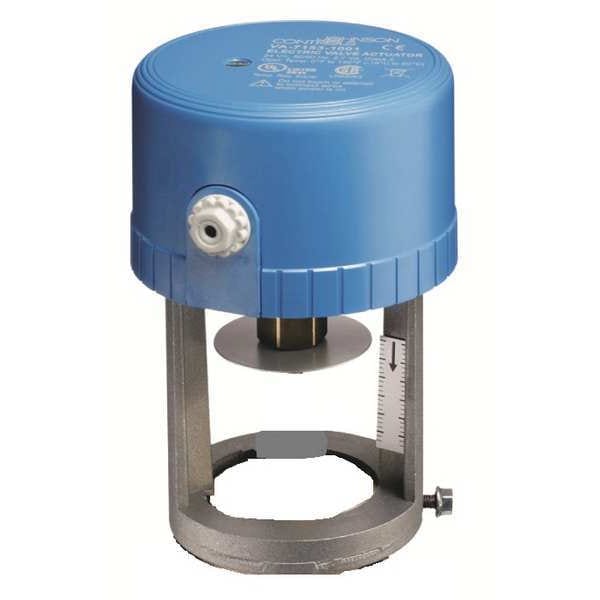

Elec Act, 90 in.-lb., Proportional, 24VAC
| Signal Type | Proportional |
|---|---|
| Torque | 90 in-lb |
| Voltage | 24V AC |
| Width | 3-27/32 in |
| Stroke Deg. | 25/32 |
| Depth | 3-27/32 in |
| Power Consumption | 4.7 VA |
| Height | 6-1/16 in |
| Includes | Valve Linkage |
| Item | Electric Globe Valve Actuator |
| Type of Actuator | Non-Spring Return |
| Cycle Time | 200 sec |
| Ambient Temp. Range | To 140 Degrees F |
| Electrical Connections | Screw Terminals |
| For Use With | Globe Valves |
| Overall Width | 3-7/8 in |
| Overall Height | 6-1/16 in |
| Standards | ANSI B16.15, Class 250, CRN 0C22556.5 |
| Application | Air Conditioning, Heating, Ventilation |
| Product Type | Valve Actuator |
| Overall Depth | 3-7/8 in |
| Electrical Connection Type | Terminals |
| Compatible Brand | Johnson Controls |
| Operating Temperature - Maximum | 140 deg F |
| Return Action | Non-Spring Return |
| Compatible Series | VG7000 |
| Control Signal | Proportional |
| NEMA Rating | 2 |
| Stroke Length | 3/4 in |
| Electrical Lead Length | Not Applicable |
| Housing Material | Bronze |
| Number of Auxiliary Switches | 0 |
| Operating Temperature - Minimum | 0 deg F |
| Frequency | 50/60 Hz |
| Compatible Valve Body Pattern | Two-Way |
| Mounting Style | Direct Mount |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
