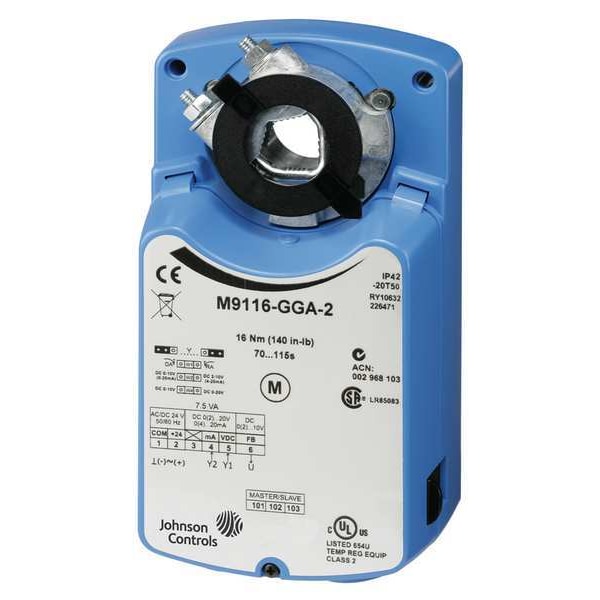

Electric Actuator, 140 in.-lb., -4 to 122
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Proportional |
| Torque | 140 in-lb |
| Voltage | 24V AC/DC |
| Type | Non-Spring Return |
| Depth | 2-11/16 in |
| Electrical Connections | Screw Terminals |
| Motor Direction | CW, CCW |
| Width | 4-1/4 in |
| Item | Actuator |
| Timing | 70 to 115 sec |
| Includes | Anti-Rotation Bracket |
| Shaft Type | Self-Centering Clamping |
| Switch Type | 2 SPDT |
| Stroke Deg. | 90 |
| Height | 6 in |
| For Use With | Dampers and Valves |
| Power Consumption | 7.5 VA |
| Ambient Temp. Range | -4 to 122 deg F |
| Number of Auxiliary Switches | 2 |
| For Shaft Diameter | 3/4 in |
| For Shaft Width | 5/8 in |
| Compatible with Series | VF4000, VF5000, VG1000, VG7000 |
| Contact Form | SPDT |
| Product Type | Actuator |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Shaft Rotation | CW, CCW |
| Overall Depth | 2-5/8 in |
| Rated Torque | 140 in-lb |
| Electrical Connection Type | Terminals |
| Overall Width | 4-1/4 in |
| For Shaft Height | 5/8 in |
| Valve Application | Damper, Valve |
| NEMA Rating | 2 |
| Input Voltage | 24V AC/DC |
| Minimum Operating Temperature | -4 deg F |
| Overall Height | 6 in |
| Standards | CE Certified EMC Directive 2004/108/EC, CSA Certified C22.2 No. 139, File LR85083, Class 3221 02, UL 873 CCN XAPX, File E27734 |
| Stroke Degree | 0 to 90 Degrees |
| Maximum Operating Temperature | 122 deg F |
| IP Rating | IP42 |
| Time to Close | 115 sec |
| For Shaft Shape | Round, Square |
| Output Signal | 0 to 10V DC |
| Application | Dampers, Valves |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
