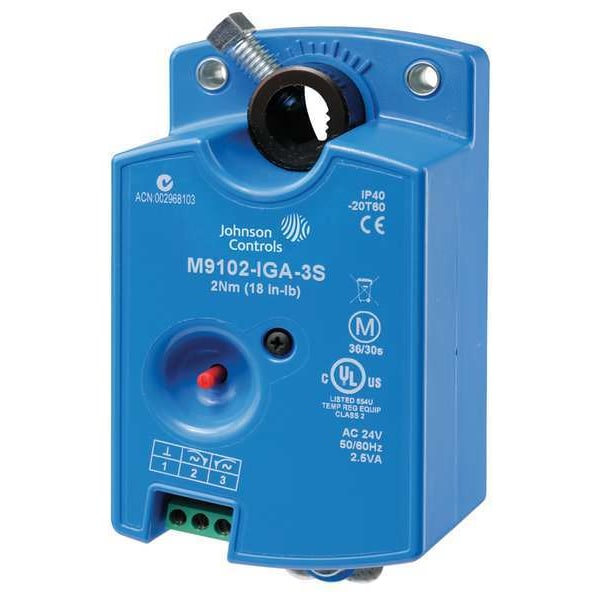

Electric Actuator, 18 in.-lb., -4 to 140
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point |
| Torque | 18 in-lb |
| Voltage | 24V AC |
| Type | Non-Spring Return |
| Includes | Anti-Rotation Bracket |
| Motor Direction | CW, CCW |
| Depth | 2-1/4 in |
| For Use With | Dampers and Valves |
| Timing | 30 sec |
| Width | 2-13/16 in |
| Height | 5-5/32 in |
| Electrical Connections | Screw Terminals |
| Item | Actuator |
| Ambient Temp. Range | -4 to 140 deg F |
| Power Consumption | 2.1 VA |
| Stroke Deg. | 90 |
| Shaft Type | Self-Centering Clamping |
| Product Type | Actuator |
| For Shaft Shape | Round, Square |
| Overall Depth | 2-1/4 in |
| NEMA Rating | 1 |
| For Shaft Width | 3/8 in |
| Number of Auxiliary Switches | 0 |
| IP Rating | IP40 |
| Minimum Operating Temperature | -4 deg F |
| Stroke Degree | 93 Degrees |
| Valve Application | Damper |
| Time to Close | 30 sec |
| Overall Width | 2-7/8 in |
| For Shaft Height | 3/8 in |
| Standards | C-Tick Mark Australia, CE Certified, CSA Certified C22.2 No. 139, EMC Directive 2004/108/EC, Guide No. XAPX for USA and Canada, NZ Emissions Compliant, UL Listed 60730-1, UL Listed E4436 |
| Maximum Operating Temperature | 140 deg F |
| Overall Height | 5-1/8 in |
| Rated Torque | 18 in-lb |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Input Voltage | 24V AC |
| For Shaft Diameter | 1/2 in |
| Shaft Rotation | CW, CCW |
| Electrical Connection Type | Terminals |
| Application | Dampers, Zone Valves, VAV Boxes |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
