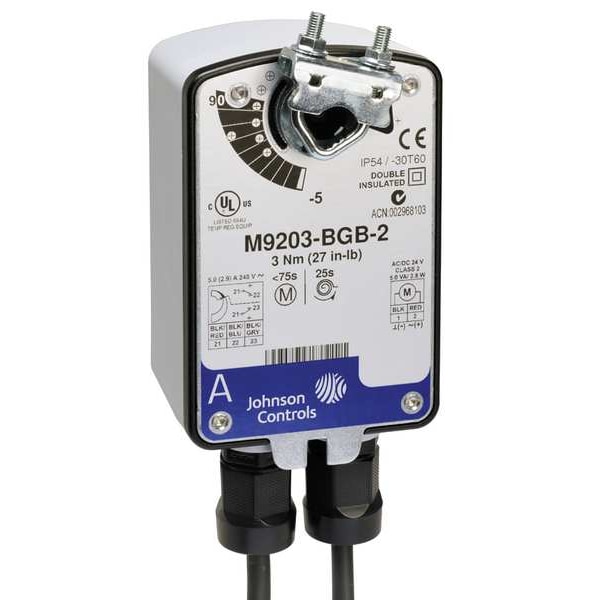

Electric Actuator, 27 in.-lb.-22 to 140
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | Proportional |
| Torque | 27 in-lb |
| Voltage | 24V AC/DC |
| Type | Spring-Return |
| Width | 3-15/16 in |
| Shaft Type | Self-Centering Clamping |
| Power Consumption | 5.1 VA |
| Includes | Anti-Rotation Bracket |
| Item | Actuator |
| Timing | 90 sec |
| Depth | 2-1/4 in |
| Stroke Deg. | 90 |
| Height | 6-3/8 in |
| Motor Direction | CW, CCW |
| Replaces Honeywell Motors | Mfr. No. MS7503A2030 |
| For Use With | Dampers and Valves |
| Electrical Connections | Cable |
| Ambient Temp. Range | -22 to 140 deg F |
| Shaft Rotation | CW, CCW |
| Electrical Connection Type | Hardwired |
| Standards | 60730-1:02-CAN/CSA, C-Tick Mark Australia, C22.2 No. 24-93, CE Certified, CE Certified EMC Directive 2004/108/EC, CSA Certified, Guide No. XAPX for USA and Canada, Low Voltage Directive 2006/95/EC, NZ Emissions Compliant, UL Listed, UL Listed 60730-1A: 2003-08, Ed. 3.1, UL Listed 60730-2-14: 2002-02, Ed. 1, Part 2, UL Listed E4436 |
| Overall Height | 6-3/8 in |
| IP Rating | IP54 |
| For Shaft Shape | Round |
| Overall Width | 3-1/4 in |
| Overall Depth | 2-1/4 in |
| For Use With Building Automation Systems | Building Automation System Compatible |
| NEMA Rating | 2 |
| For Shaft Height | Not Applicable |
| Product Type | Actuator |
| Power Rating | 1.9 W |
| Time to Close | 90 sec |
| Input Voltage | 24V AC |
| For Shaft Width | Not Applicable |
| Valve Application | Damper |
| Stroke Degree | 95 Degrees |
| Minimum Operating Temperature | -22 deg F |
| Number of Auxiliary Switches | 0 |
| For Shaft Diameter | 1/2 in |
| Maximum Operating Temperature | 140 deg F |
| Rated Torque | 27 in-lb |
| Plenum Rating | Plenum Rated |
| Output Signal | 0 to 10V DC |
| Application | Dampers |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
