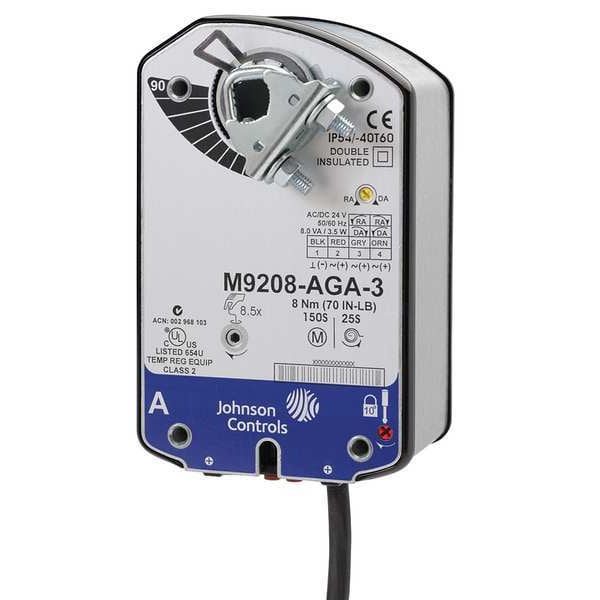

Electric Actuator, 70 in.-lb.-40 to 140
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | Proportional |
| Torque | 70 in-lb |
| Voltage | 24V AC/DC |
| Type | Spring-Return |
| For Use With | Dampers and Valves |
| Height | 6-3/8 in |
| Timing | 150 sec |
| Electrical Connections | Cable |
| Stroke Deg. | 90 |
| Motor Direction | CW, CCW |
| Includes | Anti-Rotation Bracket |
| Shaft Type | Self-Centering Clamping |
| Depth | 2-1/4 in |
| Power Consumption | 7.9 VA |
| Ambient Temp. Range | -40 to 140 deg F |
| Item | Actuator |
| Replaces Honeywell Motors | Mfr. No. MS7505A2130 |
| Switch Type | 2 SPDT |
| Width | 3-7/8 in |
| Electrical Connection Type | Hardwired |
| Time to Close | 150 sec |
| Maximum Operating Temperature | 140 deg F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Input Voltage | 24V AC/DC |
| For Shaft Height | Not Applicable |
| Overall Height | 6-3/8 in |
| Rated Torque | 70 in-lb |
| For Shaft Diameter | 5/8 in |
| Valve Application | Damper |
| For Shaft Shape | Round |
| Minimum Operating Temperature | -40 deg F |
| NEMA Rating | 2 |
| Contact Form | SPDT |
| Product Type | Actuator |
| Overall Width | 3-7/8 in |
| Stroke Degree | 90 Degrees |
| IP Rating | IP54 |
| For Shaft Width | Not Applicable |
| Shaft Rotation | CW, CCW |
| Number of Auxiliary Switches | 2 |
| Overall Depth | 2-1/4 in |
| Application | Dampers |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
