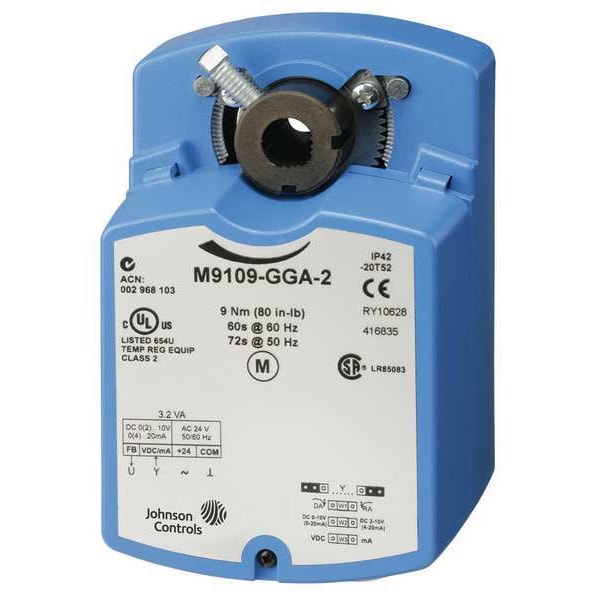

Electric Actuator, 80 in.-lb.-4 to 131F
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Proportional |
| Torque | 80 in-lb |
| Voltage | 24V AC/DC |
| Type | Non-Spring Return |
| Motor Direction | CW, CCW |
| Width | 4-1/4 in |
| Depth | 2-11/16 in |
| Includes | Anti-Rotation Bracket |
| Timing | 60 sec |
| Stroke Deg. | 90 |
| Height | 6 in |
| Item | Actuator |
| Electrical Connections | Spade Terminals |
| Switch Type | 2 SPDT |
| Power Consumption | 3.2 VA |
| Ambient Temp. Range | -4 to 131 deg F |
| Shaft Type | Self-Centering Clamping |
| For Use With | Dampers and Valves |
| Standards | CE Certified |
| Overall Height | 6 in |
| For Shaft Shape | Round, Square |
| Contact Form | SPDT |
| Time to Close | 60 sec |
| For Shaft Diameter | 1/2 in |
| Overall Depth | 2-3/4 in |
| Rated Torque | 79.6 in-lb |
| IP Rating | IP32 |
| NEMA Rating | 2 |
| For Shaft Width | 3/8 in |
| Minimum Operating Temperature | -4 deg F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Number of Auxiliary Switches | 2 |
| Input Voltage | 24V AC |
| For Shaft Height | 3/8 in |
| Valve Application | Damper, Valve |
| Maximum Operating Temperature | 131 deg F |
| Electrical Connection Type | Plug-In |
| Overall Width | 4-1/4 in |
| Product Type | Actuator |
| Shaft Rotation | CW, CCW |
| Stroke Degree | 90 Degrees |
| Output Signal | 0 to 10V DC |
| Application | Dampers, VAV Boxes |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
