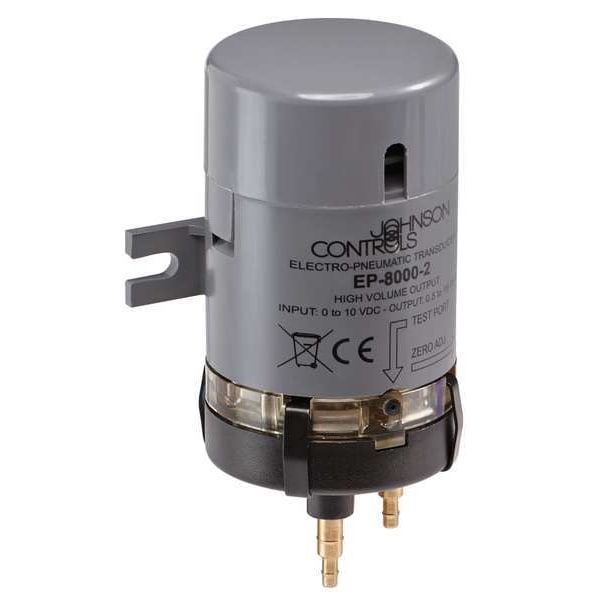

Electronic Pneumatic Transducer, 5/32 in or 1/4 in Barb
| Item | Electronic Pneumatic Transducer |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| Control Air Pressure | 20 psi |
| Air Connections | 5/32 in or 1/4 in Barb |
| Voltage | 0 to 10 VDC |
| Height | 5 in |
| Width | 3 in |
| Depth | 3 in |
| Max. Safe Air PSI | 25 psi |
| Air Consumption | 45 scfm |
| Linearity | 5% Maximum of Output Span Between 3 to 15 psig |
| Reverse Acting / Direct Acting | Direct Acting |
| Output | High Volume |
| Input Voltage | 0 to 10V AC |
| Output Range | 0.5 to 19 psi |
| Max. Ambient Temp. | 122 deg F |
| Temp. Coefficient | 0.05 psig/ Degrees F |
| Input Type | Voltage |
| Application | Pneumatic Valve and Damper Actuators, Valve and Damper Actuator Positioners |
| Action Type | Direct Acting |
| Air Connection Type | Barbed Hose |
| Nominal Pressure Range - Minimum | 0.5 psi |
| Input Voltage Signal - Minimum | 0.25 V DC |
| Input Current Signal Maximum | 20 mA |
| Air Connection Size | 1/4 in |
| Operating Pressure - Maximum | 25 psi |
| Overall Depth | 2 in |
| Nominal Low End Pressure | 19 psi |
| Operating Temperature - Minimum | 41 deg F |
| Overall Length | 4-1/4 in |
| Includes Amplifier | Amplifier Not Included |
| Control Signal | Proportional |
| Nominal Pressure Range - Maximum | 20 psi |
| Nominal High End Pressure | 25 psi |
| Control Action | Direct Acting |
| Temperature Coefficient | 0.05 Degrees F |
| Electrical Connections | Terminal Blocks |
| Operating Temperature - Maximum | 122 deg F |
| Input Signal Type | Current/Voltage |
| Cover Material | ABS, Polycarbonate |
| Input Voltage Signal - Maximum | 9.5 V DC |
| Overall Width | 1-13/16 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
