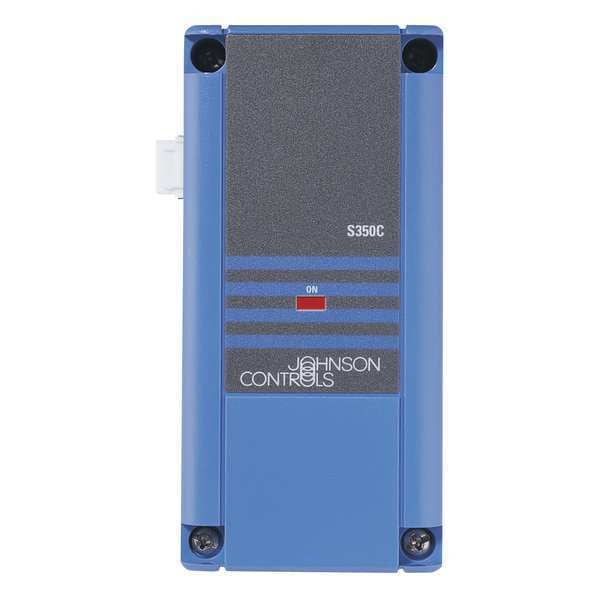

Electronic Sequencer, Wall or DIN Rail, -30 to 150 F Degrees, SPDT, 120V AC; 208/240V AC
| Voltage | 120V AC; 208/240V AC |
|---|---|
| Differential | 1 Degrees to 7 Degrees F |
| Number of Relay Inputs | 0 |
| Mounting Location | Wall or DIN Rail |
| Switch Type | SPDT |
| Color | Blue |
| Width | 2-13/32 in |
| Height | 5 in |
| Item | Electronic Sequencer |
| For Use With | System 350 |
| Thermostat Switch Type | SPDT |
| Type | Heating/Cooling |
| Width (In.) | 2-13/32 |
| Height (In.) | 5 |
| Depth (In.) | 2-13/32 |
| Mounting | Wall or DIN Rail |
| Input Voltage | 20 to 30V AC |
| Full Load Amps @ 120VAC | 15 A |
| Application | Cooling Control, Heating Control, Humidity Sensing and Control, Pressure Sensing and Control |
| Contact Rating Resistive @ 120V | 10 A |
| Number of Relay Outputs | 0 |
| Depth | 2-13/32 in |
| Control Range | -30 to 150 F Degrees |
| Standards | CSA Certified, UL Listed |
| Overall Length | 2-3/8 in |
| Contact Rating Resistive @ 240V | 10 A |
| Number of Switches | 1 |
| Full Load Amps @ 240VAC | 4.9 A |
| Number of Stages | 1 |
| Enclosure Type | NEMA 1 |
| Agency Compliance | UL E6688, CSA LR948/4813 02 |
| Voltage Range | 24 to 240 VAC |
| Features | The S353 Staging Modules Contain a Single-Pole, Double Throw Relay with an LED Indicator for Relay Status, Sequencer's Modular Design Provides Easy, Snap-Together Connections for Quick Installation and Future System Expansion |
| Function | Electronic Sequencer Stage Module |
| Compatible Brand and Series | Johnson Controls S353 Series |
| Overall Height | 5 in |
| Accessory Type | Modular Electronic Sequencer |
| Overall Depth | 2-3/8 in |
| Compatible Manufacturer Model Number | S353AA-1C |
| Compatible with Series | S353 |
| Overall Width | 2-3/8 in |
| Compatible with Manufacturer Model Number | S353AA-1C |
| Product Type | Modular Electronic Sequencer |
| Compatible Manufacturer Part Number | S353AA-1C |
| For Use With Mfr. Model Number | S353AA-1C |
| Compatible with Manufacturer Model No. | S353AA-1C |
| Compatible with Mfr. Model No. | S353AA-1C |
| For Use with Mfr Model Number | S353AA-1C |
| Compatible Pump Manufacturer Part Number | S353AA-1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
