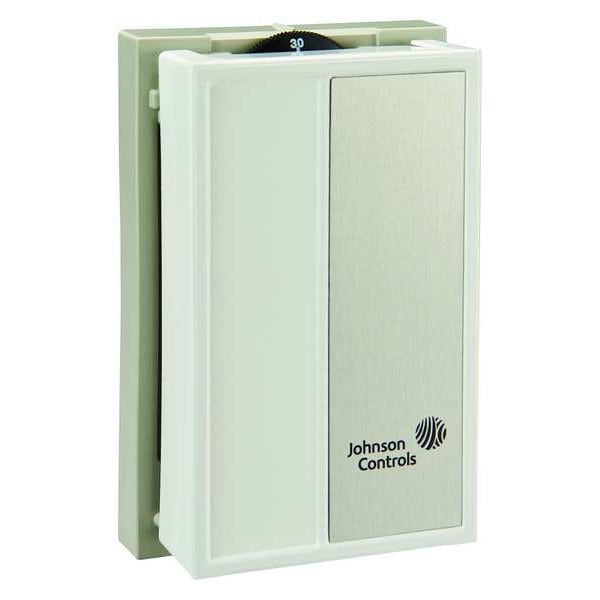

Humidistat, 10-90%, 120/240V AC, SPDT
| Item | Humidistat |
|---|---|
| Adjustable Range | 10 to 90% RH |
| Mounting | Standard Outlet Box |
| Overall Width | 2-3/4 in |
| Differential (RH %) | 4 |
| Depth (In.) | 1/2 |
| Voltage | 120/240 V AC |
| Agency Compliance | UL |
| Standards | CSA Certified, UL Listed |
| Includes | Mounting Screws |
| Switch Action | Close on Rise, Close on Fall |
| Overall Height | 4-3/8 in |
| Overall Depth | 1-1/2 in |
| Control Range | 10 to 90% |
| Humidity Differential | 4% |
| Switch Type | Snap-Acting Contacts |
| Width (In.) | 2-5/8 |
| Height (In.) | 4-13/32 |
| Input Voltage | 120/240V AC |
| Series | W42 |
| Maximum Operating Temperature | 100 deg F |
| Application | Humidity Monitoring and Control |
| Humidifier Control Compatibility | Humidifier Control Compatible |
| Includes Outdoor Temperature Sensor | Outdoor Temperature Sensor Not Included |
| Housing Material Finish | Enamel |
| Dehumidifier Control Compatibility | Dehumidifier Control Compatible |
| Housing Material | Plastic |
| Contact Form | SPDT |
| Product Type | Humidistat |
| Current Rating | 0.5 A, 1 A |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
