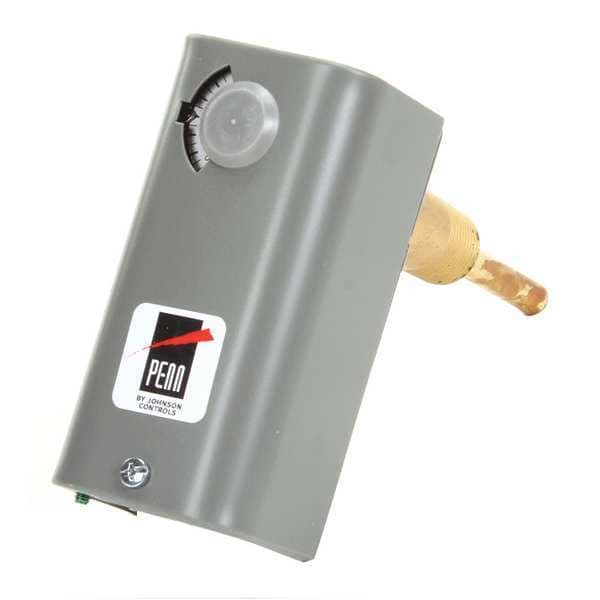

Line Volt Mechanical Tstat, Open on Rise, 100 Degrees to 240 Degrees F, SPST, 24 to 600V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 24 to 600V AC |
| Sensor Type | Well |
| Differential | 6 Degrees F |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 100 to 240 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-5/32 in |
| Height | 4-13/32 in |
| Remote Sensing Bulb Included | Yes |
| Inductive Amps @ 240V | 6 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Thermostat Voltage | 24 to 600 V AC |
| Control Range | 100 to 240 deg F |
| Resistive Amps @ 208VAC | 9.2 A |
| Number of Switches | 1 |
| Full Load Amps @ 120VAC | 15 A |
| Contact Rating Resistive @ 240V | 8 A |
| Contact Rating Resistive @ 120V | 16 A |
| Enclosure Type | Galvanized/Steel |
| Depth | 1-13/16 in |
| Item | Line Volt Mechanical Tstat |
| Thermostat Heating/Cooling | Heating, Cooling |
| Standards | CSA LR948/4813 02, UL E6688 |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Thermostat Switch Type | SPST |
| Locked Rotor Amps @ 240V | 36 A |
| Inductive Amps @ 120V | 10 A |
| Capillary Length | 72 in |
| Remote Sensing Capability | Yes |
| Temp. Sensitivity | +/-5 deg F |
| Locked Rotor Amps @ 120V | 60 A |
| Sensing Bulb Length | 3-1/2 in |
| Thermostat Programmable | No |
| Includes | Remote Sensing Bulb |
| Full Load Amps @ 240VAC | 6 A |
| Sensing Bulb Dia. | 3/8 in |
| Mounting | Immersion Well |
| Application | Heating and Cooling |
| Number of Relay Outputs | 0 |
| For Use With | Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications |
| Features | Non-Toxic, Environmentally Safe, Eco-Friendly Sensing Element Material |
| Control Type | Knob |
| Pilot Duty Rating | 125 A @ 24/600V AC |
| Maximum Operating Temperature | 140 deg F |
| Number of Heating Stages | 1 |
| Temperature Sensitivity | +/-5 deg F |
| Number of Cooling Stages | 1 |
| Sensor Location | Remote |
| Overall Height | 4-7/16 in |
| Compatible System Type | Hot Water Heating Controls Well Immersion LIT-125025 |
| Sensor Diameter | 3/8 in |
| Well Connection Size | 1/2 in NPT |
| Contact Rating | 120V AC, 240V AC |
| Temperature Differential | 6 Degrees F |
| Electrical Connection Type | Screw Terminal |
| Full Load Amps @ 120V AC | 10 A |
| Overall Width | 2-3/16 in |
| Switch Type/Action | Open, SPST on Rise |
| Overall Depth | 1-13/16 in |
| Differential Type | Manual Reset |
| Full Load Amps @ 240V AC | 6 A |
| Enclosure Color | Gray |
| Minimum Control Temperature | 100 deg F |
| Enclosure Material | Steel |
| Maximum Control Temperature | 240 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Sensor Length | 3-1/2 in |
| Number of Poles | 1 |
| Temperature Control Range | 100 to 240 deg F |
| Enclosure NEMA Rating | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
