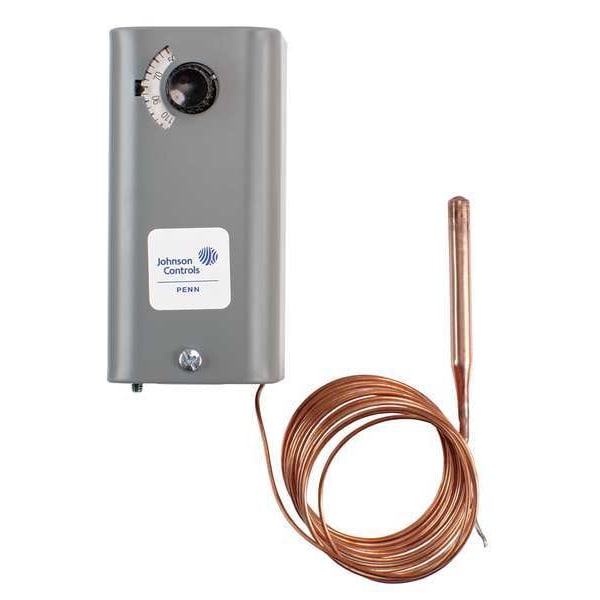

Line Volt Mechanical Tstat, Open on Rise, 50 Degrees to 200 Degrees F, SPST, 120 to 277V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 6 Degrees to 24 Degrees F Adjustable |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 50 to 200 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-1/8 in |
| Height | 4-3/8 in |
| Includes | Remote Sensing Bulb |
| Temp. Sensitivity | +/-4 deg F |
| Number of Switches | 1 |
| Capillary Length | 120 in |
| Locked Rotor Amps @ 120V | 96 A |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Switch Type | SPST |
| Sensing Bulb Length | 2-1/2 in |
| Inductive Amps @ 240V | 8 A |
| Item | Line Volt Mechanical Tstat |
| Resistive Amps @ 208VAC | 22 A |
| Remote Sensing Capability | Yes |
| Mounting Type | Flat Surface |
| Locked Rotor Amps @ 240V | 48 A |
| Sensing Bulb Dia. | 3/8 in |
| Full Load Amps @ 240VAC | 8 A |
| Contact Rating Resistive @ 277V | 22 A |
| Remote Sensing Bulb Included | Yes |
| Thermostat Programmable | No |
| Contact Rating Resistive @ 120V | 22 A |
| Enclosure Type | Galvanized/Steel |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Pilot Duty Contacts (VA) | 125 VA |
| Inductive Amps @ 120V | 16 A |
| Depth | 1-13/16 in |
| Inductive Amps @ 208V | 9.2 A |
| Full Load Amps @ 120VAC | 16 A |
| Thermostat Voltage | 120 to 277 V AC |
| Thermostat Heating/Cooling | Heating |
| Control Range | 50 to 200 deg F |
| Standards | CSA LR948/4813 02, UL E6688 |
| Number of Relay Outputs | 1 |
| Application | Heat or Cool |
| Thermostat Type | Indoor Single-Stage Controls |
| Mounting | Flat Surface |
| For Use With | HVAC/R Applications |
| Control Type | Exposed Dial |
| Overall Width | 2-1/8 in |
| Overall Height | 4-3/8 in |
| Temperature Differential | 6 Degrees to 24 Degrees F |
| Enclosure NEMA Rating | 1 |
| Minimum Operating Temperature | -35 deg F |
| Differential Type | Adjustable |
| Number of Heating Stages | 1 |
| Sensor Location | Remote |
| Temperature Sensitivity | +/-4 deg F |
| Changeover Type | Manual |
| Capillary Length/Bulb Diameter | 10 ft Capillary, 2 1/2 in x 3/8 in Bulb |
| Switch Type/Action | Open, SPST on Rise |
| Full Load Amps @ 120V AC | 16 A |
| Minimum Control Temperature | 50 deg F |
| Bulb Diameter | 3/8 in |
| Maximum Operating Temperature | 240 deg F |
| Bulb Length | 2-1/2 in |
| Full Load Amps @ 240V AC | 8 A |
| Stages | 1H, 1C |
| Number of Poles | 1 |
| Temperature Scale | Fahrenheit, Celsius |
| Enclosure Color | Gray |
| Maximum Control Temperature | 200 deg F |
| Contact Rating | 120V AC, 208V AC, 240V AC |
| Overall Depth | 1-7/8 in |
| Contact Type | Snap Action |
| Compatible System Type | Hot Water Heating Controls |
| Electrical Connection Type | Hardwired, Screw Terminal |
| Enclosure Material | Steel |
| Resistive Amps @ 208V AC | 22 A |
| Number of Cooling Stages | 1 |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Temperature Control Range | 50 to 200 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
