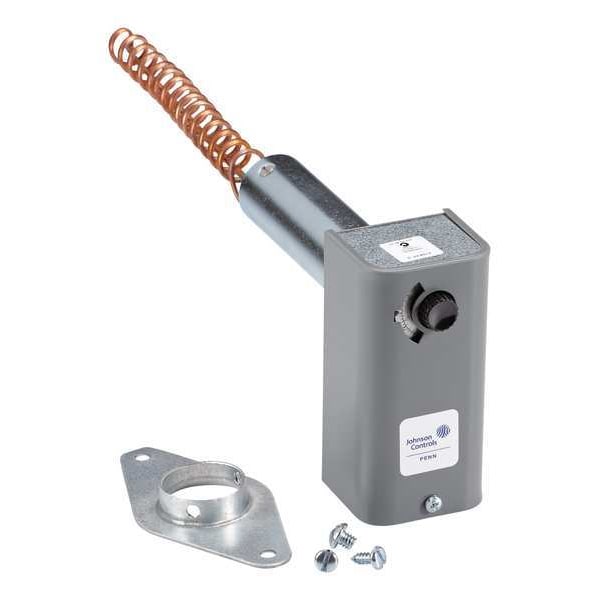

Line Volt Mechanical Tstat, Open/Close on Rise, 30 Degrees to 110 Degrees F, SPDT, 24 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 2 Degrees F |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 30 to 110 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2-1/8 in |
| Height | 4-3/8 in |
| Item | Line Volt Mechanical Tstat |
| Depth | 1-13/16 in |
| Capillary Length | 6-3/4 in |
| Inductive Amps @ 208V | 3.4 A |
| Mounting Type | Flange Mount |
| Full Load Amps @ 240VAC | 3 A |
| Remote Sensing Bulb Included | No |
| Inductive Amps @ 240V | 3 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Includes | Remote Sensing Bulb |
| Locked Rotor Amps @ 120V | 36 A |
| Thermostat Switch Type | SPDT |
| Standards | CSA LR948/4813 02, UL E6688 |
| Locked Rotor Amps @ 240V | 18 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Contact Rating Resistive @ 240V | 10 A |
| Resistive Amps @ 208VAC | 10 A |
| Thermostat Programmable | No |
| Remote Sensing Capability | No |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Control Range | 30 to 110 deg F |
| Thermostat Voltage | 24 to 277 V AC |
| Inductive Amps @ 120V | 6 A |
| Enclosure Type | Galvanized/Steel |
| Number of Switches | 1 |
| Full Load Amps @ 120VAC | 6 A |
| Temp. Sensitivity | +/-2 deg F |
| Contact Rating Resistive @ 277V | 10 A |
| Contact Rating Resistive @ 120V | 10 A |
| Application | Heat or Cool |
| Number of Relay Outputs | 1 |
| Operating Temperature Range | -30 to 240 deg F |
| Maximum Operating Temperature | 240 deg F |
| Contact Type | Snap Action |
| Full Load Amps @ 120V AC | 6 A |
| Temperature Sensitivity | +/-2 deg F |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Enclosure Material | Steel |
| Pilot Duty Rating | 125VA @ 24 to 277V AC |
| Resistive Amps @ 208V AC | 10 A |
| Number of Heating Stages | 1 |
| Maximum Control Temperature | 110 deg F |
| Stages | 1H, 1C |
| Number of Poles | 1 |
| Overall Height | 4-3/8 in |
| Overall Depth | 14-5/8 in |
| Enclosure Finish | Galvanized |
| Temperature Differential | 2 Degrees F |
| Number of Cooling Stages | 1 |
| Overall Width | 2-1/8 in |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Control Range | 30 to 110 deg F |
| Full Load Amps @ 240V AC | 3 A |
| Minimum Operating Temperature | -30 deg F |
| Enclosure NEMA Rating | 1 |
| Enclosure Color | Gray |
| Minimum Control Temperature | 30 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
