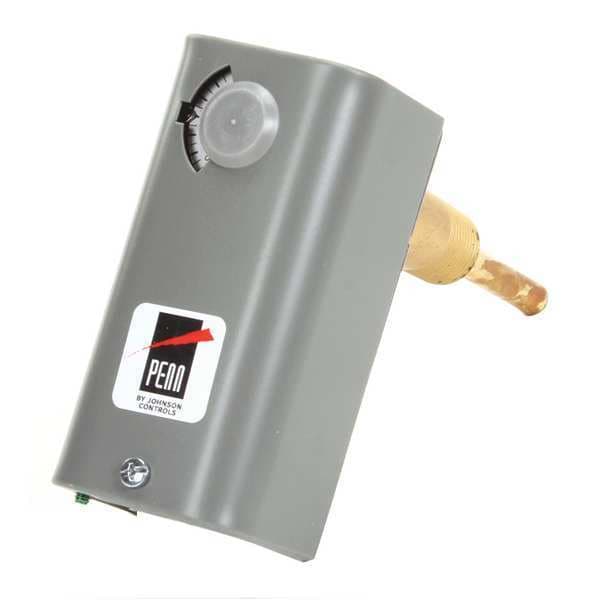

Line Volt Mechanical Tstat, Open/Close on Rise, SPDT, 24 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Well |
| Differential | 6 Degrees to 24 Degrees F |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 30 to 80 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2-1/8 in |
| Height | 4-3/8 in |
| Remote Sensing Capability | Yes |
| Thermostat Voltage | 24 to 277 V AC |
| Locked Rotor Amps @ 120V | 96 A |
| Full Load Amps @ 120VAC | 16 A |
| Remote Sensing Bulb Included | Yes |
| Contact Rating Resistive @ 277V | 22 A |
| Temp. Sensitivity | +/-5 deg F |
| Number of Switches | 1 |
| Inductive Amps @ 120V | 16 A |
| Locked Rotor Amps @ 240V | 48 A |
| Contact Rating Resistive @ 240V | 22 A |
| Full Load Amps @ 240VAC | 8 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Item | Line Volt Mechanical Tstat |
| Thermostat Programmable | No |
| Contact Rating Resistive @ 120V | 16 A |
| Inductive Amps @ 208V | 9.2 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Inductive Amps @ 240V | 8 A |
| Standards | CSA LR948/4813 02, UL E6688 |
| Enclosure Type | Compact |
| Depth | 1-13/16 in |
| Sensing Bulb Length | 3-1/16 in |
| Sensing Bulb Dia. | 3/8 in |
| Resistive Amps @ 208VAC | 22 A |
| Thermostat Switch Type | SPDT |
| Pilot Duty Contacts (VA) | 125 VA |
| For Use With | Hot Water Boilers |
| Mounting | Immersion Well |
| Application | Heating and Cooling |
| Number of Relay Outputs | 1 |
| Thermostat Type | Line Voltage Mechanical Thermostat |
| Includes | Remote Sensing Bulb |
| Control Type | Knob |
| Overall Width | 2-1/8 in |
| Overall Height | 4-3/8 in |
| Number of Heating Stages | 1 |
| Enclosure Material | Steel |
| Contact Rating | 120V AC, 240V AC, 277V AC |
| Minimum Control Temperature | 30 deg F |
| Enclosure NEMA Rating | 1 |
| Temperature Sensitivity | +/-5 deg F |
| Sensor Diameter | 3/8 in |
| Temperature Scale | Fahrenheit |
| Well Connection Size | 1/2 in NPT |
| Electrical Connection Type | Screw Terminal |
| Number of Cooling Stages | 1 |
| Temperature Control Range | 30 to 80 deg F |
| Maximum Operating Temperature | 140 deg F |
| Enclosure Color | Gray |
| Number of Poles | 1 |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Differential Type | Adjustable |
| Full Load Amps @ 240V AC | 8 A |
| Pilot Duty Rating | 125 A @ 24/600V AC |
| Temperature Differential | 6 Degrees F to 24 Degrees F |
| Compatible System Type | Hot Water Heating Controls Well Immersion LIT-125025 |
| Sensor Location | Remote |
| Overall Depth | 1-13/16 in |
| Full Load Amps @ 120V AC | 16 A |
| Maximum Control Temperature | 80 deg F |
| Sensor Length | 3-1/16 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
