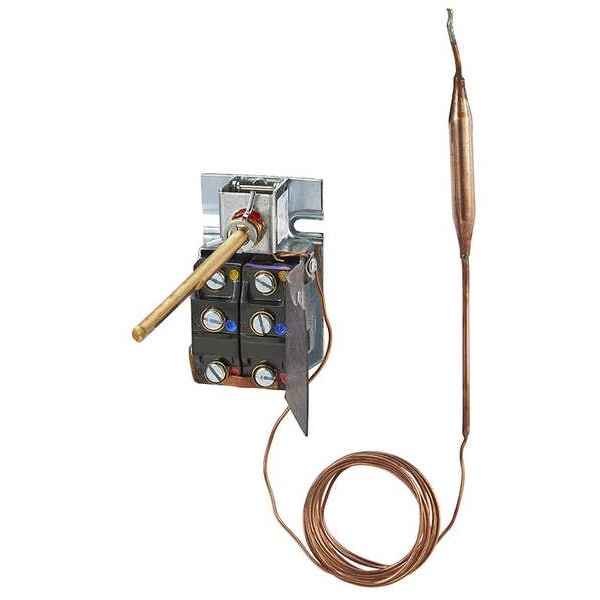

Line Volt Mechanical Tstat, Open/Close on Rise, SPDT, 24 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 2 Degrees to 7 Degrees F |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 20 to 80 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2-1/16 in |
| Height | 3-53/64 in |
| Locked Rotor Amps @ 240V | 18 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Programmable | No |
| Item | Line Volt Mechanical Tstat |
| Full Load Amps @ 240VAC | 3 A |
| Thermostat Switch Type | SPDT |
| Inductive Amps @ 208V | 3.4 A |
| Sensing Bulb Dia. | 3/8 in |
| Contact Rating Resistive @ 240V | 8 A |
| Contact Rating Resistive @ 120V | 16 A |
| Locked Rotor Amps @ 120V | 36 A |
| Resistive Amps @ 208VAC | 9.2 A |
| Capillary Length | 72 in |
| Inductive Amps @ 240V | 3 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Number of Switches | 2 |
| Depth | 2-3/64 in |
| Standards | CSA LR948/4813 02, UL E6688 |
| Remote Sensing Capability | No |
| Inductive Amps @ 120V | 6 A |
| Thermostat Voltage | 24 to 277 V AC |
| Contact Rating Resistive @ 277V | 7.2 A |
| Full Load Amps @ 120VAC | 15 A |
| Remote Sensing Bulb Included | No |
| Enclosure Type | Galvanized/Steel |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Application | Heat and Cool |
| For Use With | 2-Stage Open Type Temperature Controls are Designed for Mounting in Cases or Enclosures that are Part of the Equipment on which they are Installed |
| Number of Relay Outputs | 0 |
| Thermostat Type | Indoor Two-Stage Controls |
| Features | The A28 Series are 2-Stage Temperature Controls That Incorporate a Liquid Filled Sensing Element |
| Control Type | Exposed Dial |
| Resistive Amps @ 208V AC | 9.2 A |
| Temperature Differential | 2 Degrees to 7 Degrees F |
| Enclosure Material | Steel |
| Maximum Operating Temperature | 140 deg F |
| Temperature Scale | Fahrenheit |
| Contact Rating | 120V AC, 240V AC, 277V AC |
| Mounting Direction | Vertical |
| Pilot Duty Rating | 125 VA |
| Maximum Control Temperature | 80 deg F |
| Minimum Control Temperature | 20 deg F |
| Differential Type | Adjustable |
| Number of Poles | 1 |
| Overall Width | 2-1/8 in |
| Full Load Amps @ 120V AC | 15 A |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Temperature Control Range | 20 to 80 deg F |
| Overall Depth | 2 in |
| Enclosure Color | Gray |
| Bulb Diameter | 3/8 in |
| Overall Height | 3-7/8 in |
| Minimum Operating Temperature | -35 deg F |
| Full Load Amps @ 240V AC | 3 A |
| Capillary Length/Bulb Diameter | 6 ft Capillary, 3/8 in Bulb |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
