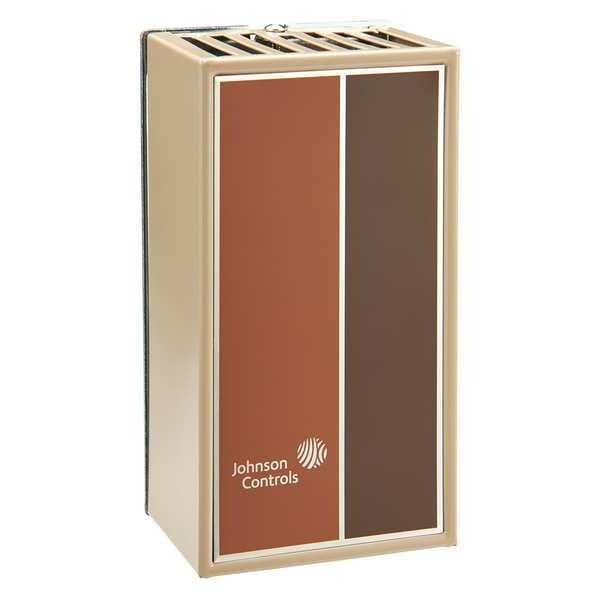

Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Temperature |
| Differential | 1 Degrees to 1.3 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 40 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPDT |
| Color | Beige |
| Width | 2-25/32 in |
| Height | 5-7/32 in |
| Number of Switches | 2 |
| Full Load Amps @ 240VAC | 3 A |
| Control Range | 40 to 90 deg F |
| Thermostat Switch Type | SPDT |
| Remote Sensing Bulb Included | No |
| Locked Rotor Amps @ 240V | 18 A |
| Contact Rating Resistive @ 240V | 8 A |
| Contact Rating Resistive @ 277V | 7.2 A |
| Inductive Amps @ 120V | 6 A |
| Standards | CSA, UL |
| Contact Rating Resistive @ 120V | 10 A |
| Locked Rotor Amps @ 120V | 36 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Resistive Amps @ 208VAC | 9.2 A |
| Remote Sensing Capability | No |
| Full Load Amps @ 120VAC | 15 A |
| Thermostat Programmable | No |
| Inductive Amps @ 240V | 3 A |
| Thermostat Voltage | 24 to 277 V AC |
| Enclosure Type | Steel |
| Thermostat Heating/Cooling | Heating, Cooling |
| Item | Line Volt Mechanical Tstat |
| Depth | 1-15/16 in |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Mounting Type | Vertical |
| Mounting | Wall |
| Thermostat Type | Line Voltage |
| Overall Length | 5-7/32 in |
| Number of Relay Outputs | 0 |
| Agency Compliance | UL and CSA |
| For Use With | Suitable for Temperature Control in Heating, Cooling Applications |
| Application | Heat and Cool |
| Includes | (1) Allen Wrench, (2) Machine Screws |
| Features | Control of 2-Stages of Heating and Cooling, Automatic Changeover Control of Heating and Cooling on (3) Pipe and (4) Pipe Fan Coil Installations and Similar Applications |
| Control Type | Concealed Dial |
| Type | Heating/Cooling |
| Voltage Range | 24 to 277 VAC |
| Overall Depth | 1-15/16 in |
| Mounting Direction | Vertical |
| Changeover Type | Automatic |
| System Settings | Auto |
| Maximum Control Temperature | 90 deg F |
| Temperature Control Range | 40 to 90 deg F |
| Resistive Amps @ 208V AC | 9.2 A |
| Compatible System Type | Electric Cooling, Electric Heating |
| Minimum Control Temperature | 40 deg F |
| Number of Poles | 1 |
| Full Load Amps @ 120V AC | 6 A |
| Full Load Amps @ 240V AC | 3 A |
| Number of Heating Stages | 2 |
| Remote Control Functions | No Remote Control Included |
| Housing Color | White |
| Switch Positions | Cool-Heat-Off |
| Temperature Readout | No |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Includes Positive Off | No |
| Enclosure Color | Beige |
| Temperature Differential | 1.7 Degrees F |
| Stages | 2C, 2H |
| Number of Cooling Stages | 2 |
| Housing Material | Steel |
| Pilot Duty Rating | 125 VA |
| Contact Rating | 120V AC, 208V AC, 240V AC, 277V AC |
| Overall Width | 2-13/16 in |
| Differential Type | Fixed |
| Electrical Connection Type | Screw Terminal |
| Temperature Scale | Fahrenheit, Celsius |
| Overall Height | 5-1/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
