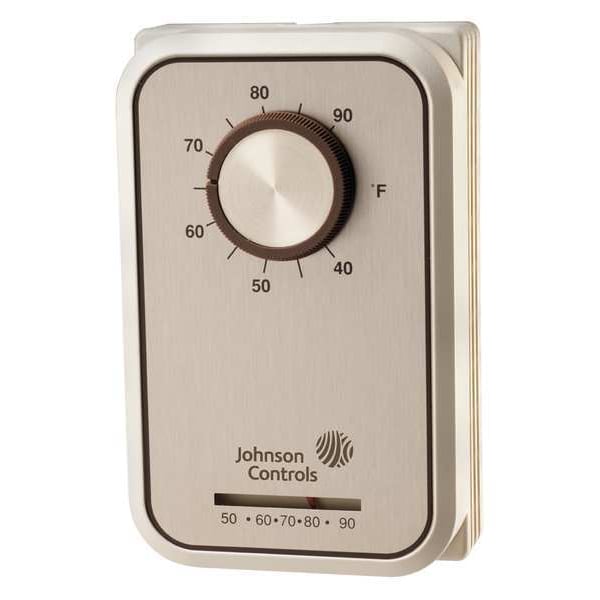

Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 0.7 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 40 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPDT |
| Color | Brown |
| Width | 3 in |
| Height | 5 in |
| Locked Rotor Amps @ 240V | 18 A |
| Remote Sensing Capability | No |
| Standards | UL |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Inductive Amps @ 120V | 10 A |
| Number of Switches | 2 |
| Thermostat Switch Type | SPDT |
| Remote Sensing Bulb Included | No |
| Thermostat Voltage | 24 to 277 V AC |
| Inductive Amps @ 240V | 10 A |
| Full Load Amps @ 120VAC | 15 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Locked Rotor Amps @ 120V | 36 A |
| Inductive Amps @ 208V | 10 A |
| Depth | 3 in |
| Mounting Type | Vertical |
| Enclosure Type | NEMA 1 |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Programmable | No |
| Item | Line Volt Mechanical Tstat |
| Full Load Amps @ 240VAC | 3 A |
| Control Range | 40 to 90 deg F |
| Thermostat Type | Line Voltage |
| Input Voltage | 120 to 277VAC |
| Application | Heat and Cool |
| Mounting | Wall |
| Number of Relay Outputs | 1 |
| Type | Heating/Cooling |
| Voltage Range | 24 to 277 VAC |
| Control Type | Exposed Dial |
| Features | Line Voltage Components Switch Box Mounted Which Provides Isolation of Electrical Circuit From Sensing Element, Mounting Plate Allows Easy Mounting and Wiring without Removing the Cover, Enclosed Pennswitch Provides Dust Protection for Contacts |
| Overall Height | 5 in |
| Overall Width | 3 in |
| Housing Material | Plastic |
| System Settings | Auto |
| Enclosure Color | Beige |
| Full Load Amps @ 120V AC | 6 A |
| Contact Type | Snap Action |
| Number of Cooling Stages | 1 |
| Temperature Readout | No |
| Changeover Type | Manual, Automatic |
| Number of Poles | 1 |
| Mounting Direction | Vertical |
| Pilot Duty Rating | 125 VA |
| Maximum Control Temperature | 90 deg F |
| Enclosure Finish | Gold Anodized |
| Temperature Differential | 0.7 Degrees F |
| Full Load Amps @ 240V AC | 3 A |
| Electrical Connection Type | Screw Terminal |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Number of Heating Stages | 1 |
| Remote Control Functions | No Remote Control Included |
| Temperature Control Range | 40 to 90 deg F |
| Overall Depth | 3 in |
| Enclosure NEMA Rating | 1 |
| Temperature Scale | Fahrenheit, Celsius |
| Includes Positive Off | No |
| Compatible System Type | Electric Cooling, Electric Heating |
| Differential Type | Fixed |
| Housing Color | White |
| Contact Rating | 120V AC, 208V AC, 240V AC, 277V AC |
| Minimum Control Temperature | 40 deg F |
| Stages | 1H, 1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
