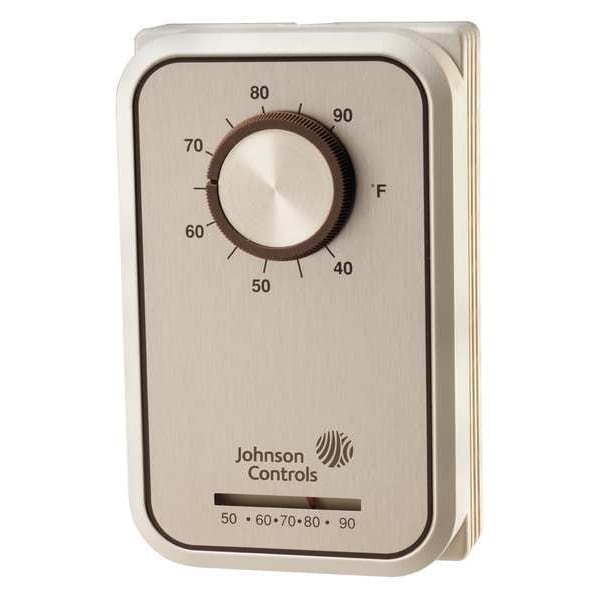

Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 0.7 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 40 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPDT |
| Color | Brown |
| Width | 3 in |
| Height | 5 in |
| Locked Rotor Amps @ 240V | 48 A |
| Thermostat Heating/Cooling | Heating |
| Mounting Type | Vertical or Horizontal |
| Standards | UL |
| Inductive Amps @ 208V | 10 A |
| Enclosure Type | NEMA 1 |
| Full Load Amps @ 120VAC | 15 A |
| Remote Sensing Bulb Included | No |
| Number of Switches | 2 |
| Depth | 3 in |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Full Load Amps @ 240VAC | 3 A |
| Thermostat Voltage | 24 to 277 V AC |
| Control Range | 40 to 90 deg F |
| Inductive Amps @ 120V | 10 A |
| Thermostat Programmable | No |
| Thermostat Switch Type | SPDT |
| Pilot Duty Contacts (VA) | 125 VA |
| Item | Line Volt Mechanical Tstat |
| Locked Rotor Amps @ 120V | 48 A, 96 A |
| Inductive Amps @ 240V | 10 A |
| Remote Sensing Capability | No |
| Thermostat Type | Line Voltage |
| Input Voltage | 120 to 277VAC |
| Application | Heat and Cool |
| Number of Relay Outputs | 1 |
| Mounting | Wall |
| Type | Heating/Cooling |
| Voltage Range | 24 to 277 VAC |
| Control Type | Exposed Dial |
| Overall Height | 5 in |
| Overall Width | 3 in |
| Full Load Amps @ 240V AC | 8 A |
| Full Load Amps @ 120V AC | 8 A, 16 A |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Readout | No |
| Housing Color | White |
| Number of Cooling Stages | 1 |
| Maximum Control Temperature | 90 deg F |
| Minimum Control Temperature | 40 deg F |
| System Settings | Auto |
| Overall Depth | 3 in |
| Enclosure Finish | Gold Anodized |
| Pilot Duty Rating | 125 VA |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Number of Poles | 1 |
| Stages | 1H, 1C |
| Contact Type | Snap Action |
| Differential Type | Fixed |
| Enclosure NEMA Rating | 1 |
| Number of Heating Stages | 1 |
| Temperature Differential | 1.7 Degrees F |
| Enclosure Color | Beige |
| Mounting Direction | Vertical, Horizontal |
| Changeover Type | Manual, Automatic |
| Temperature Control Range | 40 to 90 deg F |
| Includes Positive Off | No |
| Electrical Connection Type | Screw Terminal |
| Remote Control Functions | No Remote Control Included |
| Compatible System Type | Electric Cooling, Electric Heating |
| Housing Material | Plastic |
| Contact Rating | 120V AC, 208V AC, 240V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
