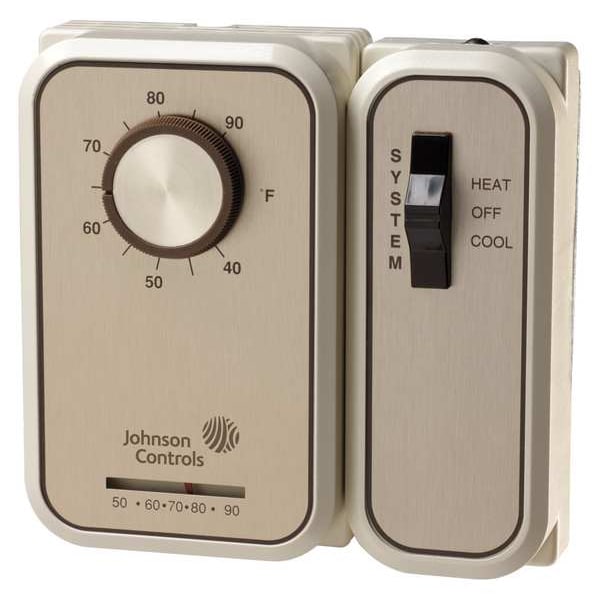

Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Bi-Metal |
| Differential | 0.7 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 40 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPDT |
| Color | Brown |
| Width | 3 in |
| Height | 5 in |
| Full Load Amps @ 120VAC | 15 A |
| Locked Rotor Amps @ 240V | 18 A |
| Remote Sensing Capability | No |
| Depth | 3 in |
| Inductive Amps @ 120V | 6.5 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Locked Rotor Amps @ 120V | 36 A |
| Remote Sensing Bulb Included | No |
| Full Load Amps @ 240VAC | 3 A |
| Item | Line Volt Mechanical Tstat |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Thermostat Switch Type | SPDT |
| Enclosure Type | NEMA 1 |
| Control Range | 40 to 90 deg F |
| Inductive Amps @ 208V | 6.5 A |
| Thermostat Programmable | No |
| Inductive Amps @ 240V | 6.5 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Number of Switches | 2 |
| Thermostat Voltage | 24 to 277 V AC |
| Mounting | Wall |
| Thermostat Type | Line Voltage Mechanical |
| Application | Heat and Cool |
| Number of Relay Outputs | 1 |
| Type | Fan Coil |
| Humidification Control | No |
| Dual Transformer Compatible | No |
| Dehumidification Control | No |
| Control Type | Exposed Dial |
| Temperature Limiting | Yes |
| Overall Width | 3 in |
| Overall Height | 5 in |
| Contact Rating | 24 to 277V AC |
| Temperature Differential | 0.7 Degrees F |
| Temperature Readout | No |
| Maximum Control Temperature | 90 deg F |
| System Settings | Cool-Heat-Off |
| Lead Wire Gauge | 16 ga |
| Compatible System Type | Fan Coil Unit |
| Temperature Scale | Fahrenheit, Celsius |
| Enclosure NEMA Rating | NEMA 1 |
| Changeover Type | Manual |
| System/Fan Settings | Cool-Heat-Off, Hi-Med-Low |
| Electrical Connection Type | Hardwired |
| Fan Settings | Hi-Med-Low |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Shape | Rectangle |
| Housing Color | Brown |
| Overall Depth | 3 in |
| Digit Size | Easy Read |
| Housing Material | Plastic |
| Differential Type | Fixed |
| Temperature Control Range | 40 to 90 deg F |
| Pilot Duty Rating | 24 to 277V AC |
| Mounting Direction/Shape | Vertical, Horizontal |
| Operating Temperature Range | 40 to 90 deg F |
| Mounting Direction | Vertical, Horizontal |
| Number of Pipes | 1 |
| Full Load Amps @ 240V AC | 6 A |
| Minimum Control Temperature | 40 deg F |
| Includes Positive Off | Yes |
| Number of Poles | 1 |
| Programming Capability | Not Programmable |
| Full Load Amps @ 120V AC | 12 A |
| Full Load Amps @ 277V AC | 5.2 A |
| Temperature settings per day | Manual Adjust |
| Application/Stages | Heat and Cool, 1H/1C |
| Stages | 1H, 1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
