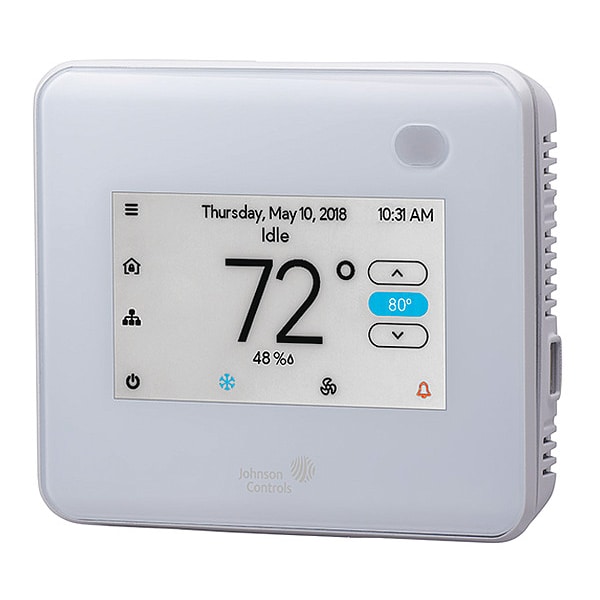

Low Voltage Thermostat, 7 or Nonprogrammable Programs, 2 H, 2 C, Hardwired, 19 to 30V AC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 19 to 30V AC |
| Stages Heat | 2 |
| Color | White |
| Stages Cool | 2 |
| Dual Transformer Compatible | No |
| Power Method | Hardwired |
| Programs per Week | 7 or Nonprogrammable |
| Terminal Designations | B1, B2, COS, R, SEN |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Includes | USB Port Configuration |
| Control Type | Touch Screen |
| Key Pad Lockout | Yes |
| Temp. Settings per Day | 0 |
| Dehumidification Control | Yes |
| Display Type | Digital |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Humidification Control | Yes |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| WiFi Capability | No |
| Temperature Differential | 1 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Temperature settings per day | 0 |
| Number of Zones | 1 |
| Includes Positive Off | Yes |
| Amazon Alexa Compatible | No |
| Changeover Type | Automatic |
| Smart Connectivity | No Connectivity |
| Backlit Screen | Yes |
| Temperature Control Range | 40 to 90 deg F |
| Differential Cool | 2 deg F |
| Mounting Direction | Horizontal |
| Wi-Fi Frequency | 2.4 GHz |
| Overall Depth | 1-7/16 in |
| Number of Cooling Stages - Conventional System | 1 |
| Wireless | Yes |
| Overall Width | 5-5/8 in |
| Network Protocol Compatibility | BACnet MS, N2, TP |
| Smart Capabilities | Occupancy Sensing |
| Number of Relay Outputs | 1 |
| Programming Capability | 7-Day |
| Number of Heating Stages - Conventional System | 1 |
| System Settings | Auto-Cool-Heat-Off |
| Operating Humidity Range | +/-5% RH, 20% to 80% RH |
| Mounting Direction/Shape | Horizontal |
| Temperature Readout | Yes |
| Backlit Type | Adjustable |
| Shape | Rectangle |
| Number of Heating Stages - Heat Pump System | 1 |
| Fan Settings | Hi-Med-Low-Auto |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired |
| Compatible Software/Device | Mobile |
| Temperature Scale | Fahrenheit, Celsius |
| Filter Change Reminder | Yes |
| Number of Cooling Stages - Heat Pump System | 1 |
| Housing Color | White |
| Minimum Temperature Control | 40 deg F |
| Number of Relay Inputs | 1 |
| Thermostat Type | Low Voltage |
| Differential Heat | 2 deg F |
| Temperature Sensitivity | +/-0.9 deg F |
| Application/Stages | Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Overall Height | 4-3/4 in |
| Contact Rating | 19 to 30V AC |
| Application | Cool, Heat |
| Compatible System Type | Fan Coil Unit |
| Maximum Temperature Control | 100 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
