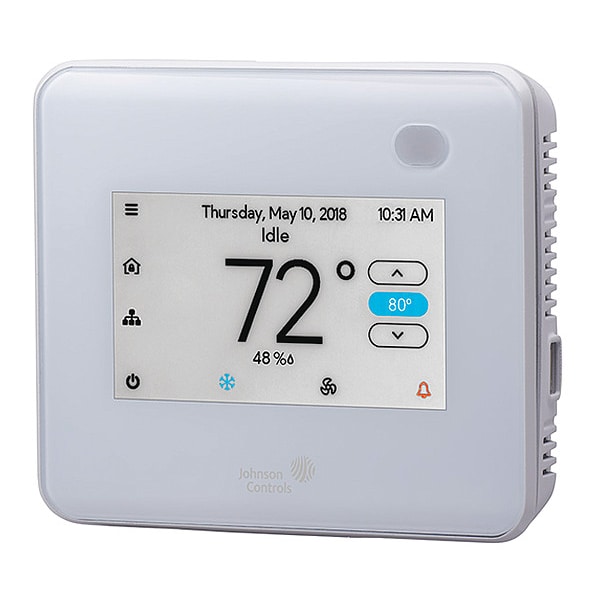

Low Voltage Thermostat, 7 or Nonprogrammable Programs, 2 H, 2 C, Hardwired, 19V AC to 30V AC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 19V AC to 30V AC |
| Stages Heat | 2 |
| Color | White |
| Stages Cool | 2 |
| Power Method | Hardwired |
| Programs per Week | 7 or Nonprogrammable |
| Temp. Settings per Day | 0 |
| Control Type | Touch Screen |
| WiFi Capability | No |
| Humidification Control | Yes |
| Includes | USB Port Configuration |
| Control Output | Single Stage RTU/Heat Pump with Economizer |
| Terminal Designations | B1, B2, COS, R, SEN |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Sensor Type | Occupancy Sensor |
| Dehumidification Control | No |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Temperature Control Range | 40 to 90 deg F, 54 to 100 deg F |
| Contact Rating | 19V AC to 30V AC |
| Operating Humidity Range | +/-5% RH, 20% to 80% RH |
| Number of Heating Stages - Heat Pump System | 2 |
| Number of Pipes | 2 |
| Overall Height | 4-3/4 in |
| Overall Depth | 1-7/16 in |
| Backlit Screen | Yes |
| Wireless | Yes |
| Operating Temperature Range | 32 to 122 deg F |
| Compatible with Building Automation Systems | Yes |
| Battery Type | Hardwired |
| Thermostat Type | Low Voltage |
| Backlit Type | Touch Activated |
| Programming Capability | 7-Day, Not Programmable |
| Network Protocol Compatibility | BACnet MS, N2, TP |
| Housing Color | White |
| Occupancy Sensor Compatibility | No |
| Enclosure Color | White |
| System Settings | Auto-Heat-Cool-Off |
| Sensor Location | Built-In |
| Number of Relay Outputs | 1 |
| Screen Width | 4-3/4 in |
| Amperage | 1 A |
| Lead Wire Gauge | 18 ga, 22 ga |
| Humidification/Dehumidification Control | Yes, No |
| Frequency | 50 Hz, 60 Hz |
| Number of Relay Inputs | 1 |
| Maximum Temperature Control | 100 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Smart Connectivity | No Connectivity |
| Temperature Adjustment | Single or Two Stage |
| Filter Change Reminder | Yes |
| Remote Control Functions | On/Off and Temperature Control |
| Sensor Length | 15 ft |
| Number of Heating Stages - Conventional System | 2 |
| Number of Cooling Stages - Heat Pump System | 2 |
| Compatible System Type | Heat Pumps With Aux, RTU's |
| Temperature settings per day | 0 |
| Fan Settings | High-Med-Low-Auto-Quiet |
| Screen Height | 1-7/16 in |
| Electrical Connection Type | Hardwired |
| Includes Batteries | No |
| Minimum Operating Temperature | 32 deg F |
| Minimum Temperature Control | 40 deg F |
| Temperature Sensitivity | +/-0.9 deg F |
| Number of Relay Inputs/Outputs | 1 / 1 |
| Overall Width | 5-5/8 in |
| Number of Cooling Stages - Conventional System | 1 |
| Application | Cool, Heat |
| Maximum Operating Temperature | 122 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
