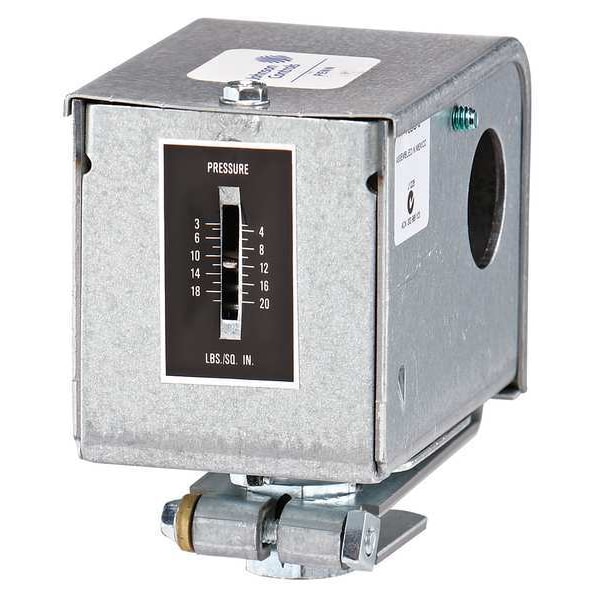

Pneumatic-Electric Switch, Bracket, 1/8 in Barbed, 3 to 20 psi
| Item | Pneumatic-Electric Switch |
|---|---|
| Control Air Pressure | 3 to 20 psi |
| Air Connections | 1/8 in Barbed |
| Voltage | 120-277V AC |
| Number of Stages | 1 |
| Differential Pressure | 2 psi |
| Contact Action | SPDT |
| Height | 3-7/8 in |
| Width | 2-3/32 in |
| Depth | 3-3/16 in |
| Standards | CSA Class No. 4813 02 File LR948, UL Guide No. XAPX File E6688 |
| Application | Electric Heating Systems, Pneumatic Systems, Interlock Functions, Pumps, Air Compressors |
| Max. Ambient Temp. | 140 deg F |
| Mounting Style | Bracket |
| Product Type | Pressure Control |
| Number of Function | Single Function |
| Overall Width | 3-3/16 in |
| Pilot Duty @ 120V AC | 125 VA |
| Pilot Duty @ 240V AC | 125 VA |
| Cover Material | Steel |
| Electrical Connections | Screw Terminal |
| Conduit Size | 1/2 in |
| Signal Pressure - Maximum | 20 psi |
| Case Material | Steel |
| Air Connection Type | Barbed Hose |
| Full Load Current @ 240V AC | 8 A |
| Air Connection Gender | Male |
| Contact Form | SPDT |
| Full Load Current @ 120V AC | 16 A |
| Overall Length | 2-1/16 in |
| Number of Switches | 1 |
| Locked Rotor Current @ 240V AC | 48 A |
| Operating Temperature - Maximum | 140 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Diaphragm Material | Buna-N |
| Air Connection Size | 1/8 in |
| Adjustment Method | Screwdriver |
| Locked Rotor Current @ 120V AC | 96 A |
| Signal Pressure - Minimum | 3 psi |
| Overall Depth | 3-1/4 in |
| Pressure Differential | 2 psi |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
