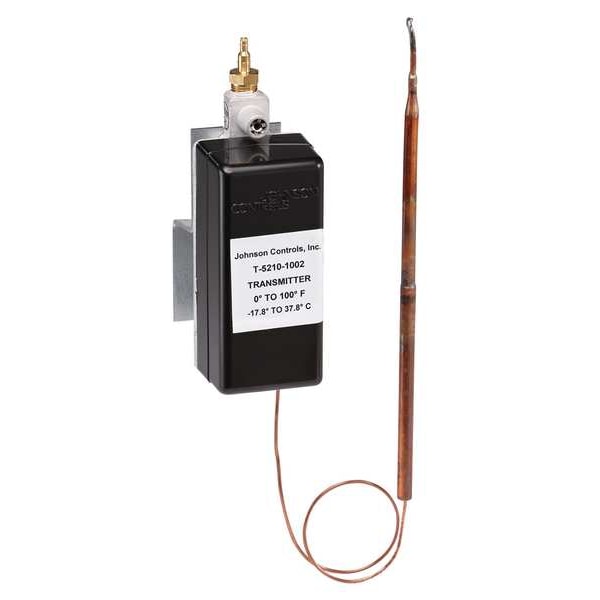

Pneumatic Temperature Transmitter, Duct, Flange, Wall, Well, 3 to 15 psi
| Item | Pneumatic Temperature Transmitter |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| Control Air Pressure | 3 to 15 psi |
| Air Connections | 1/8 in NPT Barbed Fitting for 5/32 in or 1/4 in OD Polytubing |
| Height | 5-3/16 in |
| Width | 3 in |
| Depth | 2-1/8 in |
| Temp. Control Range | 0 to 100 deg F |
| Reverse Acting / Direct Acting | Direct Acting |
| Sensing Bulb Length | 7-7/16 in |
| Output Pressure Range | 3 to 15 psi |
| Capillary Length | 5-1/2 in |
| Sensing Bulb Dia. | 1/4 in |
| Max. Air Pressure | 25 psi |
| Air Consumption | 45 scim |
| Element Type | Remote Bulb |
| Max. Ambient Temp. | 230 deg F |
| Includes | Copper Capillary, Mounting Brackets |
| Mounting Style | Duct, Flange, Wall, Well |
| Overall Width | 2-1/8 in |
| Overall Length | 3 in |
| Overall Height | 5-3/16 in |
| Action Type | Direct Acting |
| Product Type | Pneumatic Temperature Transmitter |
| Control Temperature - Maximum | 100 deg F |
| Sensing Bulb Diameter | 1/4 in |
| Air Connection Size | 1/8 in |
| Air Connection Type | Barb |
| Operating Pressure - Maximum | 25 psi |
| Control Temperature - Minimum | 0 deg F |
| Air Control Pressure - Maximum | 15 psi |
| Air Control Pressure - Minimum | 3 psi |
| Operating Temperature - Minimum | 0 deg F |
| Operating Temperature - Maximum | 100 deg F |
| Operating Pressure - Minimum | 20 psi |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
