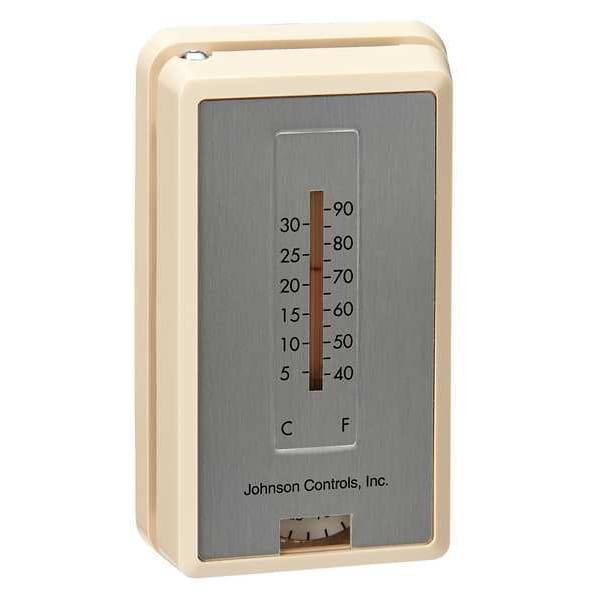

Pneumatic Thermostat, RA, 13 to 25 psi
| Item | Pneumatic Thermostat |
|---|---|
| Control Type | Exposed Dial |
| Application | Cool, Heat |
| Overall Height | 3-3/4 in |
| Overall Width | 2-1/4 in |
| Air Flow Output | Low Volume |
| Number of Pipes | 1 |
| Air Consumption | 45 or 25 scim |
| Differential Type | Adjustable |
| Sensor Type | Bi-Metallic Spring |
| Temperature Scale | Fahrenheit, Celsius |
| Number of Dials | Single |
| Mounting Direction | Vertical |
| Action | Reverse |
| Control Air Pressure Settings | 13 psig (Day)/ 25 psig (Night) |
| Manual Indexing Switch | No |
| Temperature Control Range | 55 to 85 deg F |
| Number of Pipes/Air Flow Output | 1 Pipe, Low Volume |
| Mounting Direction/Includes Cover | Vertical, No |
| Maximum Control Temperature | 85 deg F |
| Maximum Air Pressure | 25 psig |
| Fitting Connection | Barbed 5/32 in |
| Air Restrictor Required | Yes |
| Thermostat Action | Reverse |
| Air Connection Outside Diameter | 1/8 in |
| Overall Depth | 7/8 in |
| Minimum Control Temperature | 55 deg F |
| Temperature Settings | Single Temperature |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
