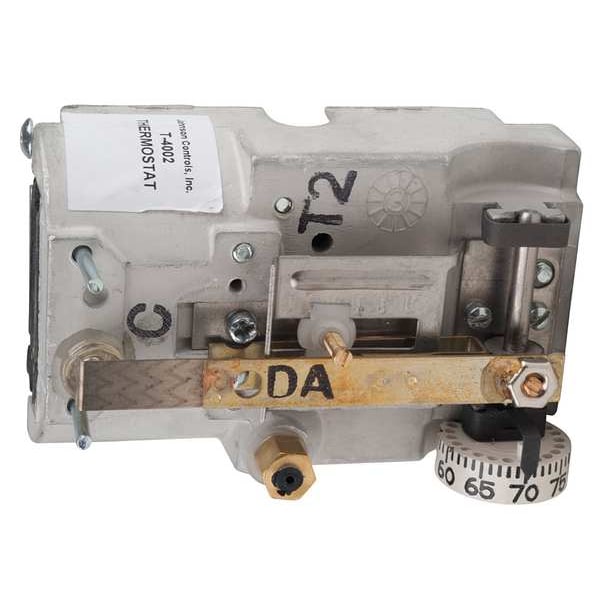

Pneumatic Thermostat, Single Temperature, Heating and Cooling, 2 Pipe, Horizontal, 5/32 in Barb
| Item | Pneumatic Thermostat |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| No. of Pipes | 2 Pipe |
| Thermostat Application | Heating, Cooling |
| Temperature Output Settings | Single Temperature |
| Control Air Pressure | 3 to 15 psi |
| Air Connections | 5/32 in Barb |
| Height | 2-3/32 in |
| Width | 3-1/8 in |
| Depth | 1-3/4 in |
| Temp. Control Range | 15 to 30 deg C |
| Air Consumption | 20 scim |
| Reverse Acting / Direct Acting | Direct Acting |
| Max. Ambient Temp. | 135 deg F |
| 1 Pipe / 2 Pipe | 2 Pipe |
| Max. Air Pressure | 25 psi |
| Heating / Cooling | Heating, Cooling |
| Mounting Style | Horizontal |
| Throttling Range | 1 to 5 psi |
| Single Temp. / Dual Temp. | Single Temperature |
| Element Type | Bi-metal |
| Sensor Type | Bi-Metallic Spring |
| Application | Heat or Cool |
| Control Type | Exposed Dial |
| Type | Direct Acting |
| Action Type | Direct Acting |
| Fitting Connection | Barbed 5/32 in |
| Overall Width | 3-1/8 in |
| Overall Height | 2-1/8 in |
| Temperature Control Range | 15 to 30 deg C |
| Manual Indexing Switch | No |
| Thermostat Action | Direct |
| Maximum Air Pressure | 25 psig |
| Control Air Pressure Settings | 0.75 psig (Day)/ 4 psig (Night) |
| Number of Pipes | 2 |
| Temperature Scale | Fahrenheit, Celsius |
| Minimum Control Temperature | 13 deg C |
| Mounting Direction/Includes Cover | Horizontal, No |
| Differential Type | Adjustable |
| Maximum Control Temperature | 30 deg C |
| Action | Direct |
| Air Connection Outside Diameter | 1/8 in |
| Temperature Sensitivity | 0.75 to 4 psi/ Degrees F |
| Temperature Settings | Single Temperature |
| Number of Dials | Single |
| Mounting Direction | Horizontal |
| Overall Depth | 1-3/4 in |
| Air Flow Capacity | 400 scim |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Air Flow Output | High Volume |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
