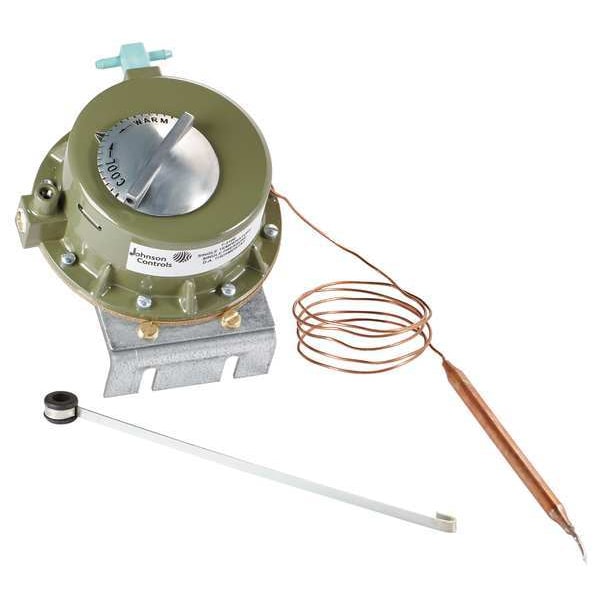

Pneumatic Thermostat, Single Temperature, Heating and Cooling, Vertical, 1/4 in Barb, 0 to 25 psi
| Item | Pneumatic Thermostat |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| Thermostat Application | Heating, Cooling |
| Temperature Output Settings | Single Temperature |
| Control Air Pressure | 0 to 25 psi |
| Air Connections | 1/4 in Barb |
| Height | 4 in |
| Width | 5 in |
| Depth | 5 in |
| Temp. Control Range | 60 to 150 deg F |
| Includes | Mounting Bracket |
| Reverse Acting / Direct Acting | Direct Acting |
| Capillary Length | 42 in |
| Max. Ambient Temp. | 150 deg F |
| Single Temp. / Dual Temp. | Single Temperature |
| Element Type | Bulb |
| Heating / Cooling | Heating, Cooling |
| Mounting Style | Vertical |
| Max. Air Pressure | 25 psi |
| Air Consumption | 1.5 scim |
| Throttling Range | 60 Degrees to 150 Degrees F |
| Application | Heat or Cool |
| Sensor Type | Remote Bulb |
| Type | Single Pressure and Temperature |
| Action Type | Direct Acting |
| Maximum Control Temperature | 150 deg F |
| Housing Material | Aluminum |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Temperature Settings | Single Temperature |
| Dial Configuration | Warm/Cold |
| Temperature Control Range | 60 to 150 deg F |
| Mounting Direction | Vertical |
| Pneumatic Thermostat Type | Remote-Bulb Sensor |
| Number of Pipes | 2 |
| Differential Type | Adjustable |
| Mounting Direction/Capillary Length | Vertical, 42 in |
| Number of Dials | Single |
| Thermostat Action | Direct |
| Air Flow Output | High Volume |
| Fitting Connection | Barbed 1/4 in |
| Air Restrictor Required | Yes |
| Pneumatic Thermostat Type/Indexing Switch | Remote-Bulb Sensor |
| Overall Height | 4-3/4 in |
| Temperature Sensitivity | 2.5 psi/ Degrees F |
| Overall Depth | 5 in |
| Maximum Air Pressure | 25 psig |
| Temperature Scale | Fahrenheit, Celsius |
| Overall Width | 5-11/16 in |
| Air Connection Outside Diameter | 1/4 in |
| Minimum Control Temperature | 60 deg F |
| Manual Indexing Switch | No |
| Mounting Direction/Includes Cover | Vertical, Yes |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
