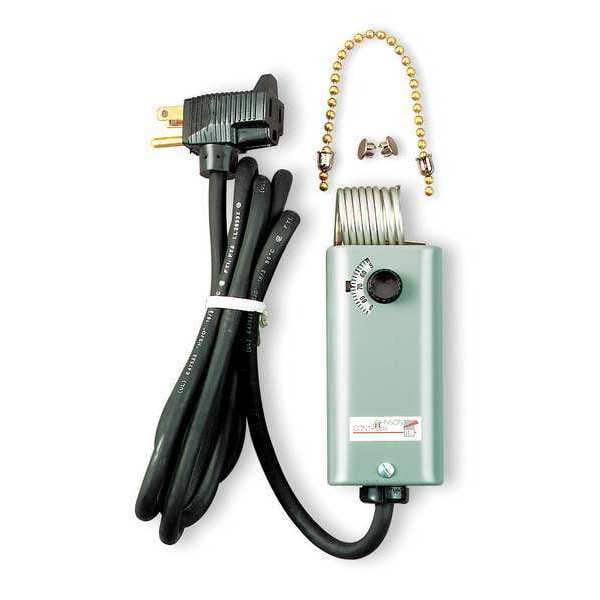

Portable Heating Thermostat, Open on Rise, SPST, 120V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 3.5 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 35 to 95 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-3/16 in |
| Height | 5-1/2 in |
| Item | Portable Heating Thermostat |
| Resistive Amps @ 120V | 13 A |
| Thermostat Voltage | 120V AC |
| Thermostat Switch Type | SPST |
| For Use With | Portable Heating Equipment |
| Inductive Amps @ 120V | 13 A |
| Includes | 6 ft Cord with Piggyback Plug, Mount with Suspension Chain or Wire |
| Standards | CSA, UL |
| Depth | 2-3/16 in |
| Enclosure Type | STEEL |
| Application | Heat Only |
| Locked Rotor Amps @ 120V | 90 A |
| Mounting | Wall or Suspension |
| Thermostat Type | Portable Heating |
| Contact Rating Resistive @ 120V | 13 A |
| Control Type | Knob |
| Key Pad Lockout | No |
| Features | Piggyback Plug In |
| Type | Piggyback Plug |
| Overall Height | 5-1/2 in |
| Overall Width | 2-3/16 in |
| Compatible System Type | Portable Heating Equipment |
| System Settings | On-Off |
| Minimum Control Temperature | 35 deg F |
| Housing Material | Steel |
| Enclosure Finish | Baked Enamel |
| Switch Type/Action | Open, SPST on Rise |
| Amperage | 13 A |
| Electrical Connection Type | Corded |
| Enclosure NEMA Rating | 1 |
| Maximum Control Temperature | 95 deg F |
| Temperature Differential | 3.5 Degrees F |
| Overall Depth | 2-3/16 in |
| Temperature Control Range | 35 to 95 deg F |
| Programming Capability | Not Programmable |
| Enclosure Color | Gray |
| Temperature settings per day | Manual Adjust |
| Pilot Duty Rating | 125 VA @ 24/120V AC |
| Contact Type | Snap Action |
| Housing Color | Gray |
| Full Load Amps @ 120V AC | 15 A |
| Enclosure Rating/Material | NEMA 1, Steel |
| Contact Rating | 120 V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
