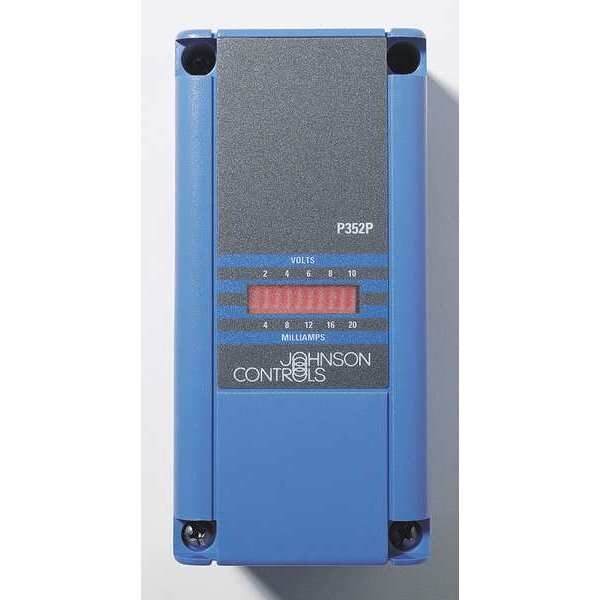

Pressure Control, Surface or DIN rail, 20 to 30VAC, 120/240VAC
| Voltage | 20 to 30VAC, 120/240VAC |
|---|---|
| Mounting Location | Surface or DIN rail |
| Height | 5 in |
| Application | Air Compressor Control, Condenser Fan Cycling, High Pressure Detection |
| Mounting | DIN |
| Item | Pressure Control |
| Type | Proportional/Integral |
| Number of Switches | 0 |
| For Use With | Stand Alone Device or In Conjunction with System 350 Plug-In Accessory Modules to Control a Variety of Single or Multiple Stage HVAC and Refrigeration Pressure Control Applications |
| Input Voltage | 20 to 30V AC |
| Standards | cUL Guide No. XAPX7, File E27734, UL Guide No. XAPX |
| Contact Form | SPDT |
| Pressure Type | Differential |
| Housing Material | Thermoplastic |
| Minimum Operating Temperature | -30 deg F |
| Mounting Hole Center to Center Distance | 1 9/16 in |
| Maximum Differential Pressure Setting | 5 in wc |
| Overall Depth | 2-3/8 in |
| Overall Width | 2-3/8 in |
| Electrical Connection Type | Plug-In |
| Product Type | Pressure Switch |
| Minimum Differential Pressure Setting | 0.5 in wc |
| Pressure Setpoint Type | Adjustable |
| Electrical Rating | 10 A Non-Inductive @ 24/240V AC, 125 VA Pilot Duty @ 24/240V AC |
| Maximum Operating Temperature | 150 deg F |
| Mounting Orientation | Horizontal, Vertical |
| Overall Height | 5 in |
| Maximum Pressure Rating | 250 psig |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
