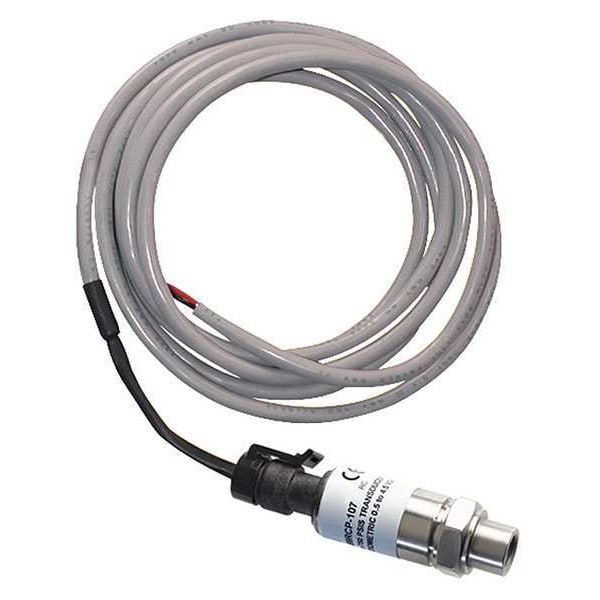

Pressure Transducer, 0 to 508 PSI
| Ambient Temp. Range (C) | -40 to 60 |
|---|---|
| Controls | Single Stage Condenser Fans |
| Item | Pressure Transducer |
| Pressure | 0 to 508 PSI |
| Pressure Range - Minimum | 0 psig |
| IP Rating | IP54 |
| Overall Width | 7 in |
| Maximum Operating Temperature | 140 deg F |
| Process Connection Gender | Female |
| Series | P266 |
| Standards | C-Tick Compliant (N1813), cULus File E244421, CE Listed, FCC to CFR47 Part 15,Subpart B Class A |
| Sensor Cable Length | 6.6 ft |
| Power Required | 5V DC |
| Process Connection Size | 1/4 in |
| Overall Height | 6-1/4 in |
| Product Type | Electronic Pressure Transducer |
| Minimum Operating Temperature | -40 deg F |
| Housing Material | Aluminum |
| NEMA Rating | 3R |
| Pressure Range - Maximum | 508 psig |
| Overall Depth | 2-3/4 in |
| Process Connection Type | SAE |
| Weight | 2.2 lb |
| Application | Condenser Fans, Refrigeration |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
