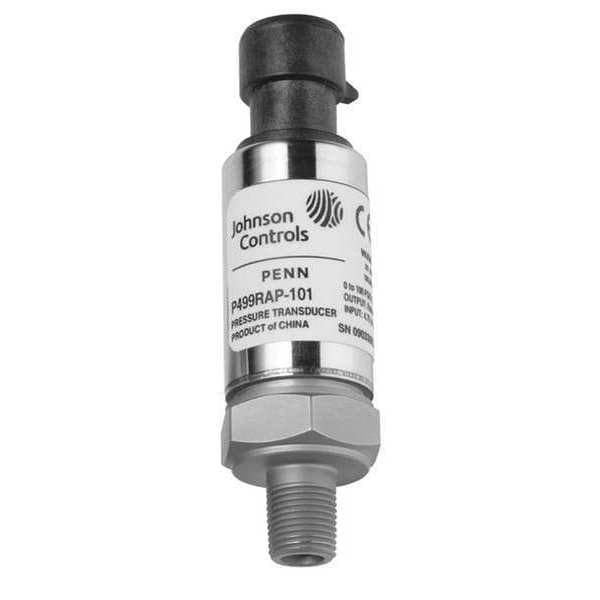

Pressure Transmitter, 0 to 750 psi, 1/8
| Item | Pressure Transmitter |
|---|---|
| Transmitter Type | Pressure Transmitter |
| Range Units - Transmitter | psig |
| Accuracy - Transmitter | +/-1.00% Full Scale |
| Process Connection Type | NPT |
| Safety Rating - Transmitter | Class I, Div. 2, Groups A, B, C, D |
| Max. Pressure (PSI) | 1,500 |
| Process Connection | 1/8 in Male NPT |
| Power Required - Transmitters | 5V DC |
| Maximum Loop Resistance | 100 Mega Ohm @ 500V DC |
| Process Connection Type - Transmitter | MNPT |
| Compatible With | All Media Compatible with 17-4PH Stainless Steel, Including Ammonia |
| NEMA Rating | 11 - Class 1, Division 2, Groups A, B, C, and D |
| Range Values - Transmitter | 0 to 750 |
| Features | 1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port |
| Range | 0 to 750 psig |
| Housing | 17-4PH Stainless Steel Construction |
| Process Connection Size | 1/8 in |
| Maximum Pressure | 750 psi |
| Process Connection Size - Transmitter | 1/8 in |
| Electrical Connection | 3-Pin Packard Connector |
| Standards | UL Listed |
| Loop Resistance | Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC |
| Minimum Operating Temperature | -40 deg F |
| Output | 0.5 to 4.5V DC |
| For Use With Media Type | Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water |
| Pressure Units | psig/bar |
| Overall Width | 7/8 in |
| Minimum Pressure | 0 psi |
| Wiring Entry - Transmitter | None |
| Power Required | 5V DC |
| Intrinsically Safe | No |
| Operating Temp. - Transmitter | -40 Degrees to 185 Degrees F |
| Electrical Connections | 3-Pin Packard Connector |
| Series | P499 |
| Electrical Connections - Transmitter | Packard Connector |
| Housing Material | Stainless Steel |
| Accuracy | +/-1% of Full Scale |
| Overall Length | 3.19 in |
| Manufacturers Warranty Length | 3 yr |
| Safety Rating | Class I Div. 2 |
| Output - Transmitter | 0.5 to 4.5V DC |
| Operating Temp. | -40 Degrees to 185 Degrees F |
| Process Connection Gender | Male |
| Maximum Operating Temperature | 185 deg F |
| Storage Temperature Range | -40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C) |
| Wetted Materials - Transmitters | 17-4PH Stainless Steel |
| Burst Pressure | 5x Range |
| Wetted Materials | 17-4PH Stainless Steel Construction |
| Number of Wires | 3 |
| Explosion/Fire Proof | No |
| Overpressure | 2x Range |
| For Use With | Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 17-4PH Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, and Many Other Compatible Fluids and Gases |
| Fitting Material | Stainless Steel |
| Input Voltage | 5V DC |
| Pressure Type Measured | Gauge |
| Cable Length | 6 ft 6 in |
| Pressure Measurement - Minimum | 0 psi |
| Loop Resistance - Maximum | 100 Mega Ohm @ 500V DC |
| Output Power | 0.5 to 4.5V DC |
| NEMA Enclosure Rating | Not Applicable |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
| Pressure Measurement - Maximum | 750 psi |
| Hazardous Location Specification | Not Applicable |
| Process Media Temperature - Minimum | -40 Degrees F |
| Process Media Temperature - Maximum | 185 Degrees F |
| IP Rating | IP67 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
