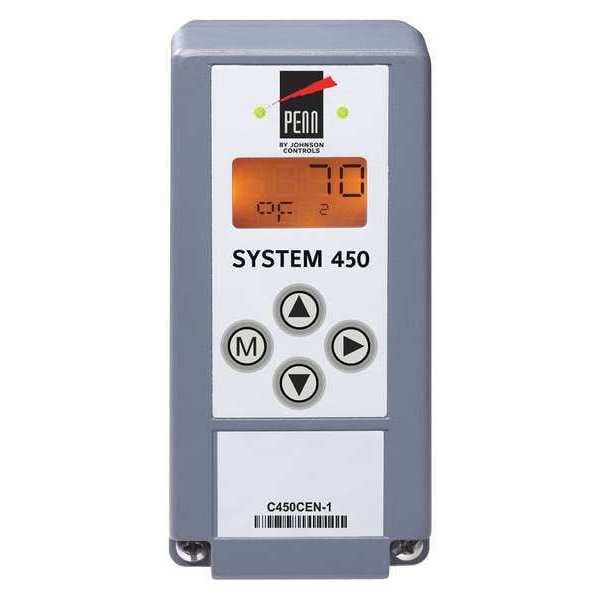

Refrigeration Control, Closes on Rise, Opens on Rise, -40 Degrees to 150 Degrees F, SPDT
| Switch Action | Closes on Rise, Opens on Rise |
|---|---|
| Voltage | 120V AC, 208V AC, 240V AC |
| Switch Type | Normally Open and Normally Closed |
| Height | 5 in |
| Depth (In.) | 2-3/8 |
| Thermostat Switch Type | SPDT |
| Width (In.) | 2-13/32 |
| Control Range (F) | -40 Degrees to 150 Degrees |
| Item | Refrigeration Control |
| Height (In.) | 5 |
| Pilot Duty Contacts (VA) | 125 VA |
| Includes | (4) Buttons, LCD, Touchpad |
| Application | Temperature, Pressure and/or Humidity |
| Type | Heating/Cooling/Pressure/Humidity |
| Full Load Amps | 16 |
| For Use With | Suitable for Temperature Control in Heating, Cooling Applications |
| Control Range | -40 to 150 deg F |
| Agency Compliance | C-UL listed, UL |
| Overall Length | 2-3/8 in |
| Mounting | DIN |
| Standards | C-Tick, CE, FCC, IC, UL |
| Product Type | Reset Control Module |
| Overall Height | 5 in |
| Temperature Differential - Maximum | 176 deg F |
| Control Temperature - Maximum | 150 Degrees F |
| Control Temperature - Minimum | -40 Degrees F |
| Temperature Differential - Minimum | -40 Degrees F |
| Full Load Current | 9.8/4.9 A |
| Pilot Duty Contacts Rating | 125 VA |
| Locked Rotor Amps | 58.8/29.4 A |
| Contact Form | SPDT |
| Reset Type | Automatic Reset |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
