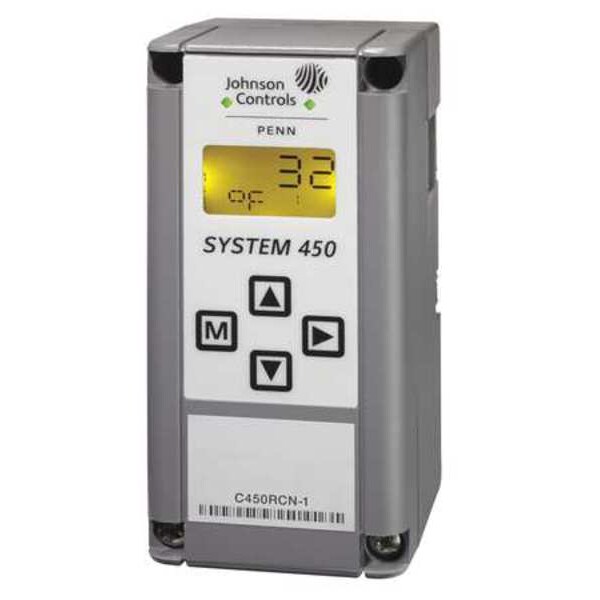

Reset Control, Open/Close on Rise, -40 Degrees to 250 Degrees F, SPDT, 24VAC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24VAC |
| Sensor Type | A99 |
| Differential | -30 Degrees to 30 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 3 |
| Switch Type | SPDT |
| Color | Gray |
| Width | 3 in |
| Height | 5 in |
| For Use With | A99 and HE-67 |
| Thermostat Switch Type | SPDT |
| Display | LCD |
| Item | Reset Control |
| Input Voltage | 24V AC |
| Depth | 3 in |
| Includes | Silicon Leads |
| Mounting Type | DIN |
| Agency Compliance | C-UL listed, UL |
| Control Range | -40 to 250 deg F |
| Overall Length | 5 in |
| Full Load Amps @ 120VAC | 9.8 A |
| Number of Relay Outputs | 2 |
| Standards | CE, cULus, FCC CFR47 |
| Mounting | DIN |
| Number of Switches | 2 |
| Number of Stages | Dual |
| Application | Pressure Sensing and Control, Humidity Sensing and Control, Temperature Sensing and Control |
| Enclosure Type | NEMA 1 |
| Full Load Amps @ 240VAC | 4.9 A |
| Type | Reset Control |
| Sensing Bulb Dia. | 1/4 in |
| Voltage Range | 0 to 5 VAC |
| Compatible with Series | 450 |
| IP Rating | IP20 |
| Overall Width | 2-3/8 in |
| Maximum Temperature Differential Setting | 30 deg F |
| Weight | 0.49 lb |
| Overall Depth | 2-3/8 in |
| Number of Sensor Inputs | 3 |
| Horsepower @ 120V AC | 0.5 HP |
| NEMA Rating | 1 |
| Variable Output Voltage | Yes |
| Temperature Control Function | Cool, Heat |
| Contact Form | SPDT |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Minimum Control Temperature | -40 deg F |
| Overall Height | 5 in |
| Product Type | Reset Control |
| Maximum Control Temperature | 150 deg F |
| Horsepower @ 240V AC | 0.5 HP |
| Housing Material | Silicon |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
