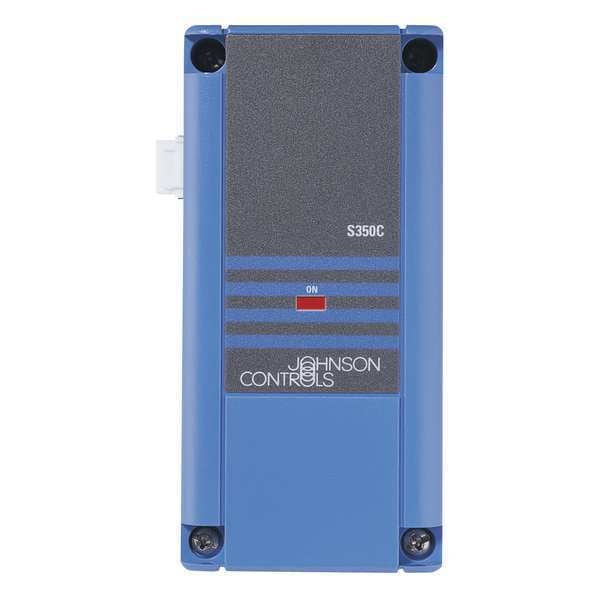

Stage Module, -30 to 150 F Degrees, SPDT, 20 to 30V AC
| Voltage | 20 to 30V AC |
|---|---|
| Differential | 1 Degrees to 30 Degrees F |
| Number of Relay Inputs | 0 |
| Switch Type | SPDT |
| Color | Blue |
| Width | 2-3/8 in |
| Height | 5 in |
| Item | Stage Module |
| Thermostat Switch Type | SPDT |
| Width (In.) | 2-3/8 |
| For Use With | A350 Temperature Control |
| Height (In.) | 5 |
| Depth (In.) | 2-3/8 |
| Type | Heating/Cooling |
| Contact Rating Resistive @ 277V | 10 A |
| Input Voltage | 120V AC, 240V AC |
| Number of Stages | 1 |
| Number of Switches | 1 |
| Depth | 2-3/8 in |
| Application | Beverage Coolers, Chiller Control, Cooling Tower Control, Frozen/Refrigerated Food Cases, Temperature Sensing and Control |
| Full Load Amps @ 240VAC | 4.9 A |
| Enclosure Type | NEMA 1 |
| Number of Relay Outputs | 0 |
| Standards | CCN XAPX, UL Listed |
| Agency Compliance | UL E27734, cUL E27734 |
| Overall Length | 2-3/8 in |
| Control Range | -30 to 150 F Degrees |
| Contact Rating Resistive @ 120V | 10 A |
| Full Load Amps @ 120VAC | 15 A |
| Contact Rating Resistive @ 240V | 10 A |
| Mounting | Wall or DIN Rail |
| Function | Slave Stage Module |
| Voltage Range | 24 to 240 VAC |
| Features | Modular Design Provides Easy, Plug-In Connections for Quick Installation and Future Expandability |
| Compatible Manufacturer Model Number | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| Overall Height | 5 in |
| Compatible Brand and Series | Johnson Controls A350R Series |
| Overall Depth | 2-3/8 in |
| Accessory Type | Temperature Stage Module |
| Compatible with Manufacturer Model Number | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| Compatible with Series | A350 |
| Product Type | Stage Module |
| Overall Width | 2-3/8 in |
| Compatible Manufacturer Part Number | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| For Use With Mfr. Model Number | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| Compatible with Manufacturer Model No. | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| Compatible with Mfr. Model No. | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| For Use with Mfr Model Number | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| Compatible Pump Manufacturer Part Number | A350AA-1C, A350AA-2C, A350BA-1C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C, JOA350BB-1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
