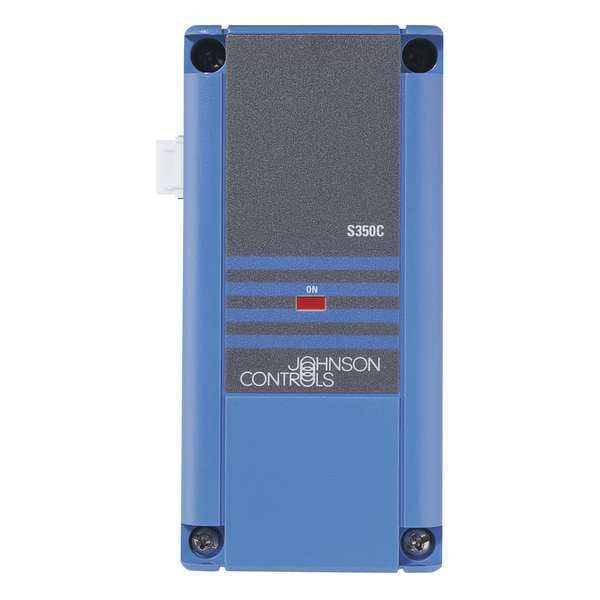

Stage Module, Wall or DIN Rail, -34 to 66 F Degrees, SPDT, 120V AC; 208/240V AC
| Voltage | 120V AC; 208/240V AC |
|---|---|
| Differential | 0.5 Degrees to 17 Degrees F |
| Number of Relay Inputs | 0 |
| Mounting Location | Wall or DIN Rail |
| Switch Type | SPDT |
| Color | Blue |
| Width | 2-3/8 in |
| Height | 5 in |
| Type | Heating/Cooling |
| Width (In.) | 2-3/8 |
| For Use With | Stand Alone Device or in Conjunction with System 350 Plug-In Accessory Modules to Control a Variety of Single or Multiple Stage HVAC and Refrigeration Pressure Control Applications |
| Item | Stage Module |
| Depth (In.) | 2-3/8 |
| Thermostat Switch Type | SPDT |
| Height (In.) | 5 |
| Overall Length | 2-3/8 in |
| Contact Rating Resistive @ 240V | 10 A |
| Contact Rating Resistive @ 120V | 10 A |
| Full Load Amps @ 120VAC | 15 A |
| Enclosure Type | NEMA 1 |
| Control Range | -34 to 66 F Degrees |
| Input Voltage | 120V AC, 240V AC |
| Number of Switches | 1 |
| Number of Stages | 1 |
| Mounting | Wall or DIN Rail |
| Full Load Amps @ 240VAC | 4.9 A |
| Application | Beverage Coolers, Chiller Control, Cooling Tower Control, Frozen/Refrigerated Food Cases, Temperature Sensing and Control |
| Standards | CCN XAPX, UL Listed |
| Number of Relay Outputs | 0 |
| Depth | 2-3/8 in |
| Agency Compliance | UL E27734, cUL E27734 |
| Contact Rating Resistive @ 277V | 10 A |
| Function | Staging of Boilers or Chillers, Staging of Refrigeration Compressors |
| Features | On/Off Electronic Pressure Control with Single-Pole, Double-Throw Relay Output and LED Indication |
| Voltage Range | 24 to 240 VAC |
| Terminal Designations | N/O |
| Compatible Manufacturer Model Number | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| Overall Height | 5 in |
| Overall Depth | 2-3/8 in |
| Compatible Brand and Series | Johnson Controls S350A Series |
| Accessory Type | Temperature Stage Module |
| Compatible with Series | A350, A350E, A350P, A350R |
| Product Type | Stage Module |
| Compatible with Manufacturer Model Number | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| Overall Width | 2-3/8 in |
| Compatible Manufacturer Part Number | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| For Use With Mfr. Model Number | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| Compatible with Manufacturer Model No. | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| Compatible with Mfr. Model No. | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| For Use with Mfr Model Number | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| Compatible Pump Manufacturer Part Number | A350AA-1C, A350AA-2C, A350EA-4C, A350PS-1C, A350PS-2C, A350RS-1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
