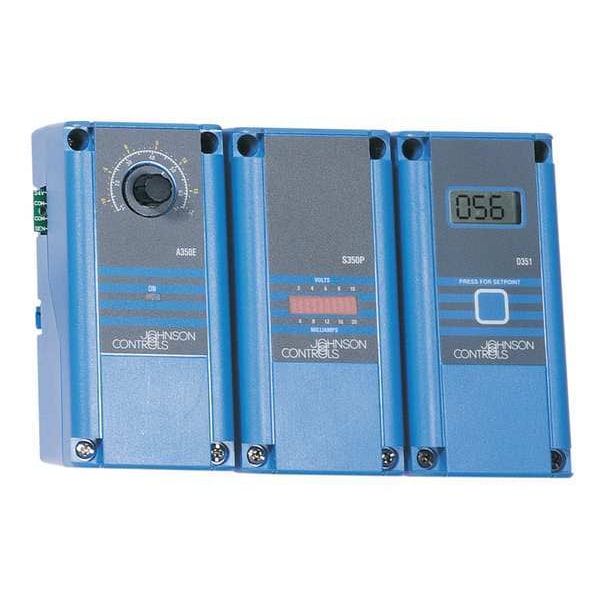

Temperature Control, Close on Rise, Open on Rise, 90 Degrees to 250 Degrees F, 20 to 30VAC
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 20 to 30VAC |
| Sensor Type | A99BC-25 |
| Differential | 1 Degrees to 30 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Color | Blue |
| Width | 2-1/2 in |
| Height | 5 in |
| Item | Temperature Control |
| Control Range | 90 to 250 deg F |
| Voltage Range | 20 to 30V AC |
| Standards | CE, Class B Industry Canada (IC) Compliant to Canadian ICES-003, cULus, FCC CFR47, UL 60730 File E27734, Vol. 1 |
| Enclosure Type | NEMA 1 |
| For Use With | A99 |
| Includes | A99BC-25 Temperature Sensor |
| Number of Relay Outputs | 1 |
| Depth | 2-1/2 in |
| Input Voltage | 120V AC, 240V AC |
| Number of Switches | 1 |
| Mounting | DIN |
| Application | Damper Control, Heating Control, Pressure Sensing and Control, Temperature Sensing and Control |
| Number of Stages | Single |
| Type | Proportional Output |
| Variable Output Voltage | Yes |
| Number of SPDT Outputs | 1 |
| Ambient Humidity | 0% to 95% RH |
| Product Type | Temperature Control |
| Overall Width | 2-1/2 in |
| IP Rating | IP20 |
| Number of Sensors Included | 1 |
| Maximum Control Temperature | 250 deg F |
| NEMA Rating | 1 |
| Compatible with Series | 350 |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Power Consumption | 3.2 VA |
| Overall Depth | 2-1/4 in |
| Contact Form | SPDT |
| Number of Sensor Inputs | 1 |
| Housing Material | Plastic |
| Temperature Control Function | Cool, Heat |
| Overall Height | 5 in |
| Maximum Temperature Differential Setting | 30 deg F |
| Minimum Control Temperature | 90 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
