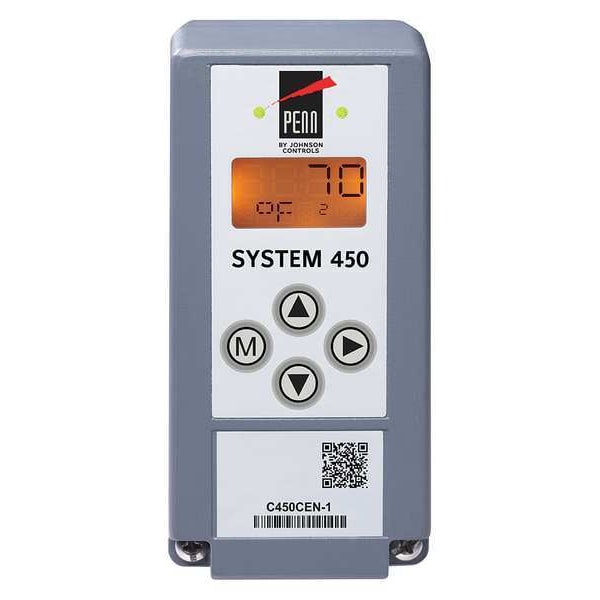

Temperature Control, Open/Close on Rise, -50 Degrees to 360 Degrees F, 24VAC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24VAC |
| Differential | -50 Degrees to 360 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 3 |
| Color | Gray |
| Width | 2-3/8 in |
| Height | 6 in |
| Mounting Type | Din Rail |
| Item | Temperature Control |
| For Use With | System 450 Control, Power and Stage Modules, Series P499 Pressures Transducers, Series A99 and Series TE-6300 Temperature Sensors and Series HE-67/68 Humidity Sensors |
| Agency Compliance | C-Tick Compliant (N1813), CISPR22, Class B, cULus, E27734:FCC CFR47, ICES-003, UL 60730 |
| Display | LCD |
| Input Voltage | 24V AC |
| Depth | 2-1/2 in |
| Control Range | -50 to 360 deg F |
| Number of Relay Outputs | 0 |
| Standards | CE, cULus, FCC CFR47 |
| Number of Switches | 0 |
| Enclosure Type | NEMA 1 |
| Mounting | DIN Rail |
| Overall Length | 6 in |
| Application | Pressure Sensing and Control, Humidity Sensing and Control, Temperature Sensing and Control |
| Number of Stages | Single |
| Voltage Range | 24 to 240 VAC |
| Type | Heating/Cooling/Pressure/Humidity/HVAC/R |
| Temperature Control Function | Cool, Heat |
| Variable Output Voltage | Yes |
| Horsepower @ 240V AC | 0.5 HP |
| Product Type | Temperature Control |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Weight | 0.46 lb |
| Contact Form | SPDT |
| Number of Sensor Inputs | 3 |
| Compatible with Series | 450 |
| Housing Material | Silicon |
| Maximum Temperature Differential Setting | 30 deg F |
| IP Rating | IP20 |
| NEMA Rating | 1 |
| Minimum Control Temperature | -40 deg F |
| Horsepower @ 120V AC | 0.5 HP |
| Overall Depth | 2-3/8 in |
| Overall Height | 5 in |
| Maximum Control Temperature | 150 deg F |
| Overall Width | 2-3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
