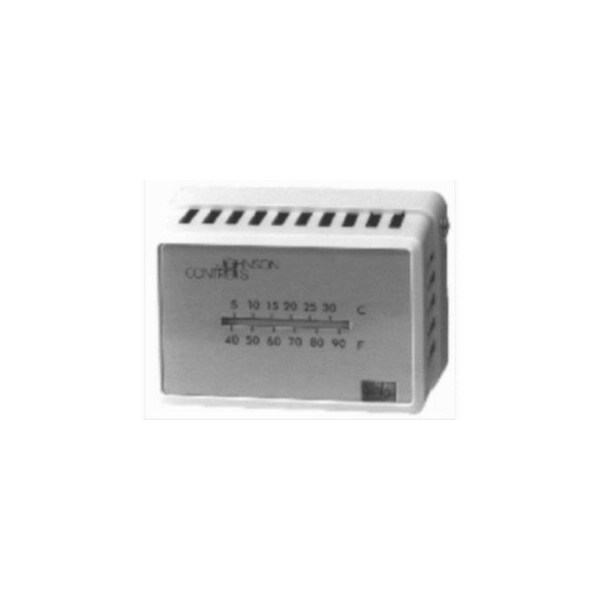

Thermostat Rev Rr Horiz F
| Item | Pneumatic Thermostat |
|---|---|
| Control Type | Exposed Dial |
| Application | Cool, Heat |
| Temperature Settings | Single Temperature |
| Number of Pipes/Air Flow Output | 1 Pipe, High Volume |
| Air Consumption | 20 scim |
| Manual Indexing Switch | No |
| Thermostat Action | Reverse |
| Air Connection Outside Diameter | 1/8 in |
| Mounting Direction | Horizontal |
| Action | Reverse |
| Maximum Control Temperature | 85 deg F |
| Temperature Control Range | 55 to 85 deg F |
| Pneumatic Thermostat Type/Indexing Switch | Remote Reset |
| Maximum Air Pressure | 25 psig |
| Temperature Scale | Fahrenheit, Celsius |
| Overall Width | 3-1/8 in |
| Differential Type | Fixed |
| Air Flow Output | High Volume |
| Overall Height | 2-1/8 in |
| Mounting Direction/Includes Cover | Horizontal, No |
| Fitting Connection | Barbed 5/32 in |
| Sensor Type | Bi-Metallic Spring |
| Control Air Pressure Settings | 13 psig (Day)/ 25 psig (Night) |
| Number of Dials | Single |
| Pneumatic Thermostat Type | Remote Reset |
| Minimum Control Temperature | 55 deg F |
| Number of Pipes | 1 |
| Overall Depth | 1-3/4 in |
| Air Flow Capacity | 400 scim |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
