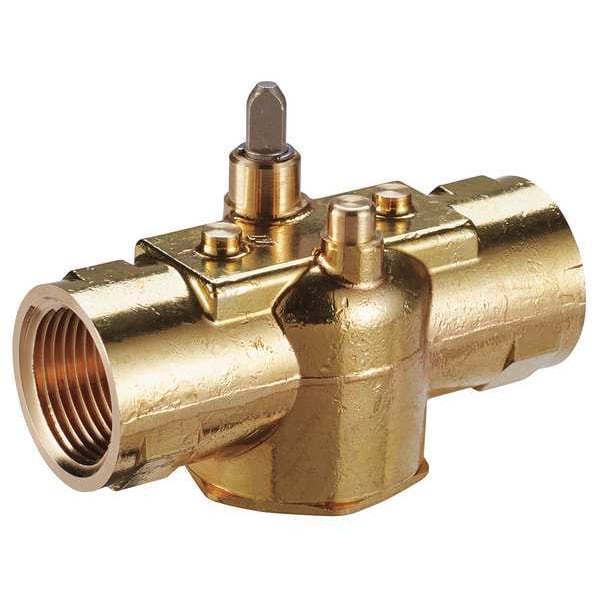

Zone Valve, 2 Way, On/Off, (F)NPT 1/2
| Item | Hydronic Globe Valve |
|---|---|
| Type | 2 Way, On/Off |
| For Use With | J Series Actuators |
| Includes | Valve Only |
| Safe Working Water PSI | 300 psi |
| High Pressure Closeoff | 30 |
| Depth (In.) | 1-3/4 |
| Connection Type/Size (In.) | NPT 1/2 |
| Max. Water Temp. (Deg. F) | 200 Degrees F |
| Width (In.) | 2-5/8 |
| Coefficient of Volume | 3.5 |
| Description/Special Features | Zone Valve, 2 Way, On/Off, (F)NPT 1/2 |
| Height (In.) | 1-7/8 |
| Standard Pressure Closeoff | 25 |
| Actuator Control Pressure - Maximum | Not Applicable |
| Actuator Housing Material | Not Applicable |
| Actuator Return Action | Not Applicable |
| Application | Chilled/Hot Water Control, Fan Coils, Heat Exchangers, Saturated Steam Control |
| Body Pattern | Two-Way |
| Installation Orientation | Horizontal |
| Stem Material | Brass |
| Port Connection Size | 1/2 in |
| Overall Length | 2-5/8 in |
| Body Material | Brass |
| Actuator Control Signal | On/Off |
| Close-Off Pressure | 25 psi |
| Gasket/Plug Material | Viton |
| Coefficient of Volume (Cv) | 3.5 |
| Actuator Voltage | Not Applicable |
| Fluid Temperature - Maximum | 200 deg F |
| Allowable Pressure - Maximum | 300 psi |
| Port Connection Type | NPT |
| Port Connection Gender | Female |
| Includes Actuator | Actuator Not Included |
| Actuator Cover Material | Not Applicable |
| Actuator Control Pressure - Minimum | Not Applicable |
| For Media | Water-Glycol Solution to 50%, Water |
| Operating Temperature - Maximum | 200 deg F |
| Actuator Gears Material | Not Applicable |
| Actuator Type | Not Applicable |
| Fluid Temperature - Minimum | 32 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Spring Action | Spring Return |
| Overall Width | 1-7/8 in |
| Overall Depth | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
