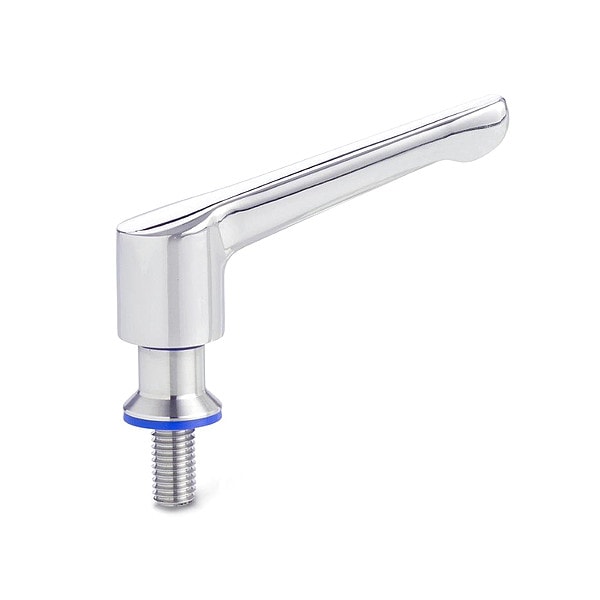

Adjustable Levers - Hygienic Design
| Screw Length | 20 mm |
|---|---|
| Thread Size | M8 |
| Color | Silver |
| Thread Length | 0.79 in |
| Standards | DGUV Certified, FDA Approved, RoHS |
| Overall Height | 3.33 in |
| Overall Length | 2.85 in |
| Finish | Polished |
| Item | Adjustable Lever |
| Thread Type | External, UNC |
| Seal Material | HNBR |
| Seal Material - Minimum Temperature | -25 deg C |
| Seal Material - Maximum Temperature | 150 deg C |
| Resistance Properties | Heat-Resistant |
| Finish - Machining | Polished |
| Thread Standard | Metric |
| Handle Material | Stainless Steel |
| Features | Sealed Mounting Surface, Tapped Insert is Moveably Attached to the Handle with Serrations, Serration can be Relocated into any Required Position |
| Average Surface Roughness (Ra) | Less Than 0.8 micron |
| Handle Type | Lever |
| Components Material | Stainless Steel |
| Handle Length | 72.4 mm |
| Seal Temperature - Minimum | -13 deg F |
| Thread Pitch | 1.25 mm |
| Measurement System | Metric |
| Thread Material | Stainless Steel |
| Handle Angle | 15 deg |
| Seal Temperature - Maximum | 302 deg F |
| Handle Height - Maximum | 64.6 mm |
| Handle Height - Minimum | 62.1 mm |
| Hub Height | 45.8 mm |
| Package Quantity | 1 |
