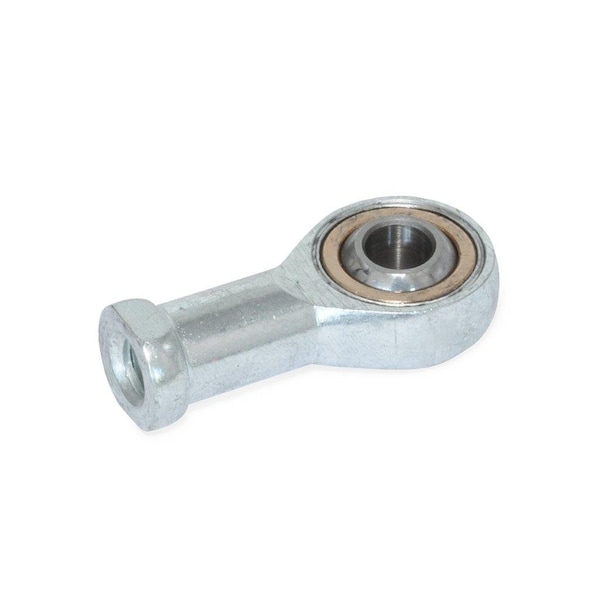

Din648-10-M10X1.25L Rod End Bearings
| Basic Material | Housing - Steel zinc-plated, Bearing - Bronze, Ring - Steel |
|---|---|
| Features | Tapped |
| Bore Dia. | 10 mm |
| Max Tilt Angle | 13 deg |
| Finish | Blue Passivated |
| Thread Length | 20 mm |
| Application | Suitable for High Load, Low Speed Applications with Hanging Angles, Required Linear, Rotational or Oscillatory Motions. |
| Thread Size | M10 x 1.25 |
| Package Quantity | 1 |
