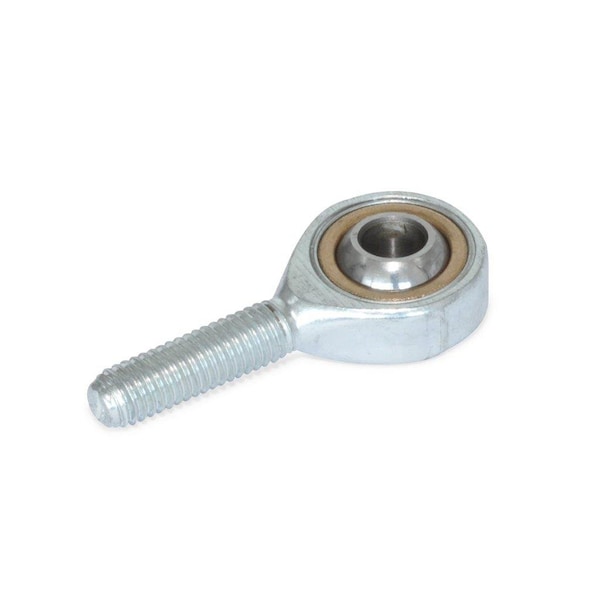

Din648-12-M12-32 Rod End Bearings
| Basic Material | Housing - Steel zinc-plated, Bearing - Bronze, Ring - Steel |
|---|---|
| Features | Threaded Stem |
| Thread Size | M12 |
| Finish | Blue Passivated |
| Application | Suitable for High Load, Low Speed Applications with Hanging Angles, Required Linear, Rotational or Oscillatory Motions. |
| Max Tilt Angle | 13 deg |
| Thread Length | 32 mm |
| Bore Dia. | 12 mm |
| Package Quantity | 1 |
