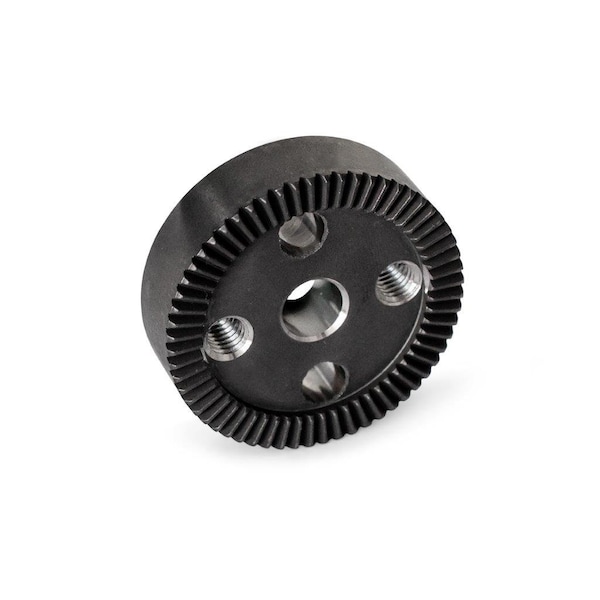

Gn187.4-40-48-D-St Serrated Locking Plate
| Material | Steel |
|---|---|
| Color | Black |
| Thickness | 11.5 mm |
| Knob Dia. | 40 mm |
| Finish | Black steam oxidized |
| Primary Application | With serrated locking plates GN 187.4, components can be adjusted and locked form-fit at a defined angle. The angle position of the serration is adapted to the mounting holes, ensuring an parallel or right-angled arrangement. The tooth count of 48 / 60 enables the adjustment in 7.5° or 6° steps. |
| Tooth Count | 48 |
| Bore Dia. | 8.2 mm |
| Pin Hole Dia. | 6 mm |
| Package Quantity | 1 |
