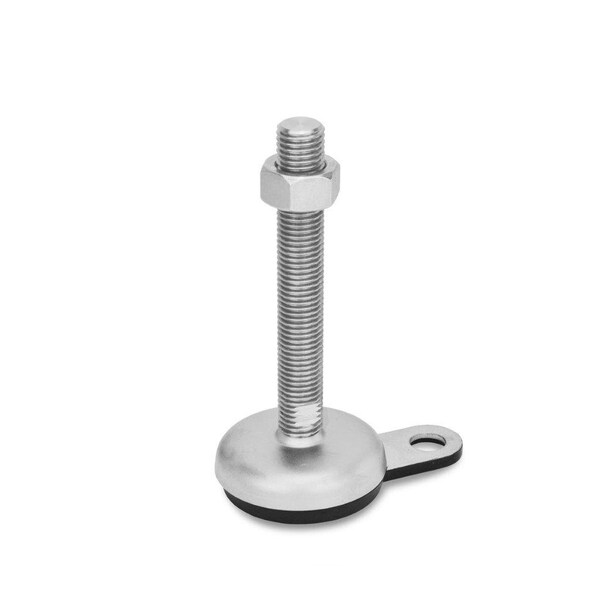

Gn33-100-M20-150-B1-Tk Leveling Feet
| Material | Base - Stainless steel 304, Stud - Stainless steel 303 |
|---|---|
| Features | With nut, wrench flat at the bottom |
| Finish | Matte shot-blasted finish |
| Primary Application | The solid rubber pad of leveling feet GN 33 is firmly embedded in the stainles steel base and secured by a screw loctited into place. The leveling feet can be screwed to the mounting surface using the mounting flange, which prevents lateral slippage. |
| Thread Size | M20 |
| Bore Dia. | 100 mm |
| Thread Length | 150 mm |
| Package Quantity | 1 |
